Investing in a custom shield light box sign with dual front-and-side illumination is one of the most dynamic ways for auto styling garages and speed shops to create an unforgettable brand statement. In June 2026, Rizy M., founder of Apex Customs located in Manchester, New Hampshire (Commercial Plaza, NH 03103), reached out to EndPoint Sign via WhatsApp after discovering our viral commercial fabrication portfolio. If you are weighing a light box against channel letters, our signage guides compare both options side by side. It was manufactured in our own commercial signage factory in Guangzhou, with in-house acrylic fabrication and LED assembly.
Rizy needed an imposing, high-contrast crest sign to anchor his automotive workshop's interior garage wall against a clean hexagonal honeycomb LED ceiling backdrop. This case study breaks down how our direct manufacturing plant engineered a 3.5 ft vertical shield structure, corrected logo vector scaling, achieved 360-degree acrylic edge lighting, and demonstrated 100% factory accountability when severe overseas courier handling occurred. Explore more verified client installations in our commercial signage case study portfolio.
1. The Design Challenge: Scaling a Crest Logo for Maximum Visual Impact
Automotive customization facilities require bold architectural graphics that match high-performance vehicles. When configuring this custom shield light box sign, Rizy was direct in his initial brief: "That’s my logo and I want it in the biggest size you guys have!"

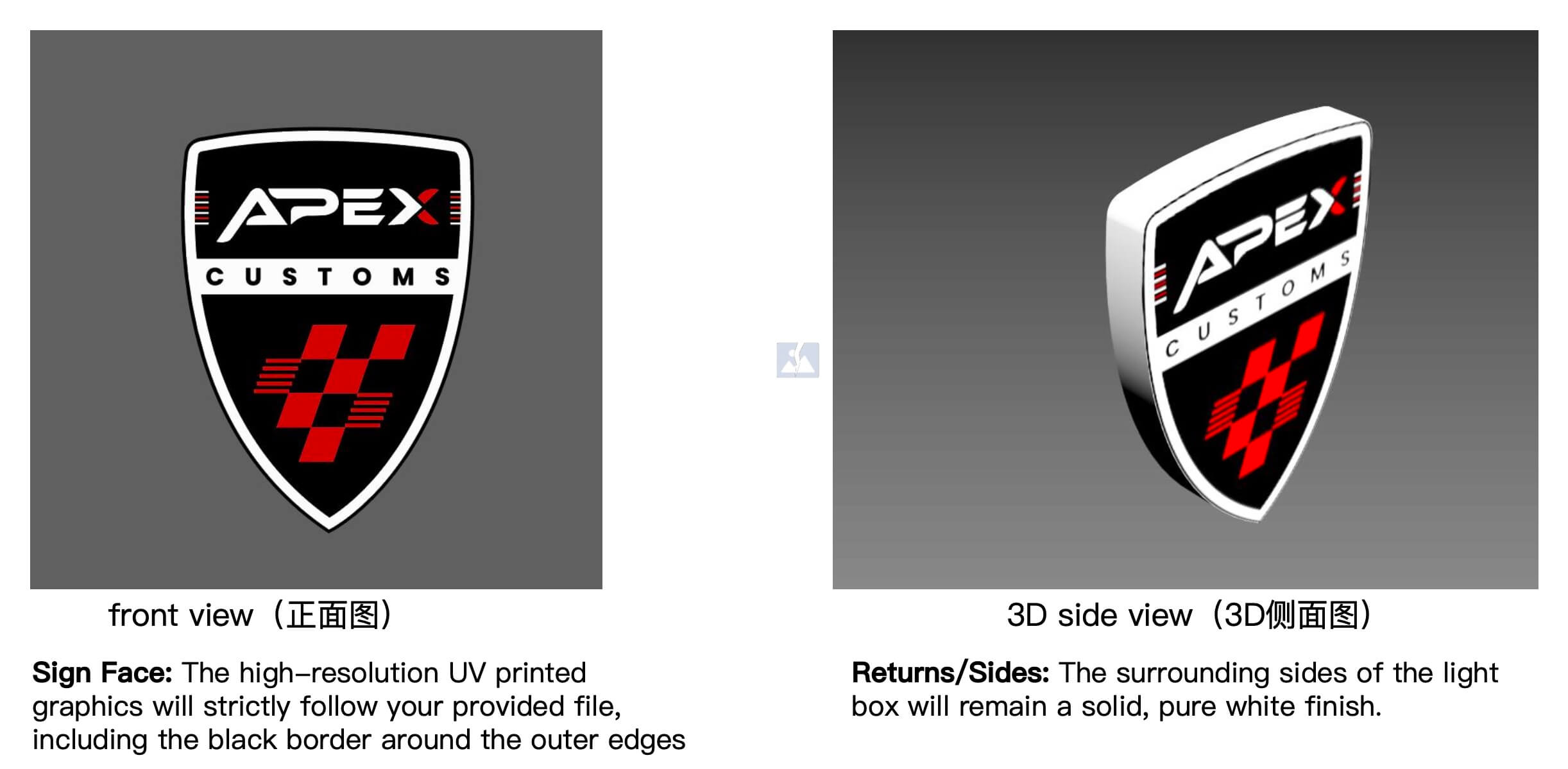

A massive sign must maintain structural rigidity and balanced weight without causing bowing across the face. Our engineering department analyzed his garage wall dimensions and calculated an optimal proportional footprint: 2.55 ft Wide × 3.50 ft High (78 cm × 107 cm) with a deep 3.15-inch (80 mm) side return profile. This proportions-first approach ensured that the signature checkered crest and "APEX CUSTOMS" letterforms stood out with complete geometric symmetry from across the bay.
2. Engineering Dual-Emission: Seamless Front Face + Side Return Glow
Standard commercial light boxes often use aluminum extrusion frames with opaque metal sides, emitting light only from the front—a contrast to the borderless front-only illumination detailed in our Bobanest custom 3D acrylic sign case study. For Apex Customs, our team engineered a 3D dual-emission custom shield light box sign with advanced luminous diffusion:
- Cast Optical Acrylic Face: 4mm high-transmittance cast acrylic, precision CNC laser-contoured to the shield curve, following the same subtractive milling accuracy seen in our 3D channel letter sign manufacturing guide.
- Dual-Layer High-Density UV Curing: A specialized double-pass UV print technique guarantees that deep blacks remain 100% opaque, while the red checkered patterns and white "APEX" letters transmit crisp, vibrant illumination without color wash.

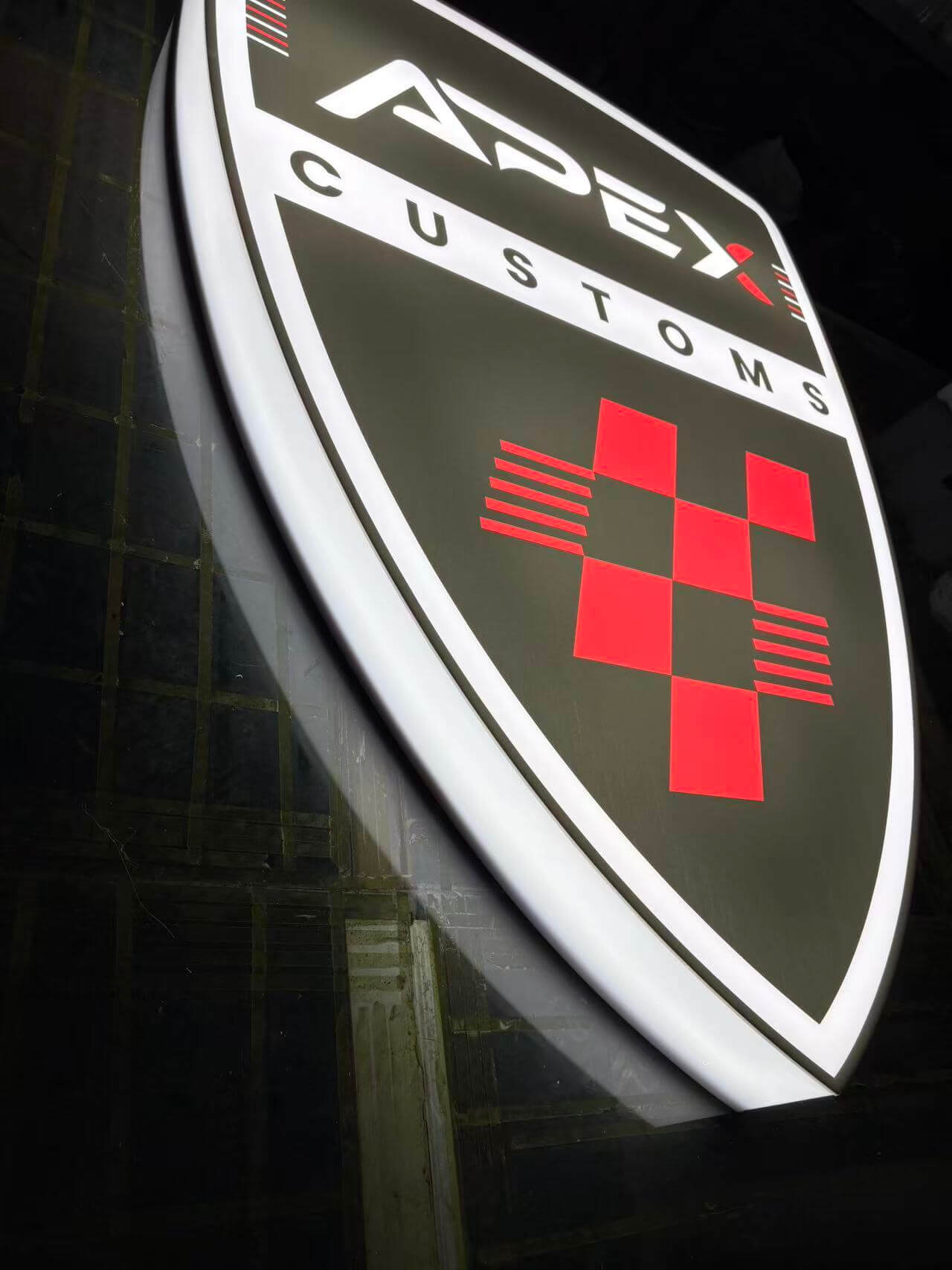

- 3D Luminous Returns: Chemically bonded pure white acrylic side walls that allow bright 6500K LED light to bleed evenly around the entire perimeter, casting a radiant halo on the surrounding wall.
3. 48-Hour Darkroom Aging Test & Pre-Shipment Quality Control

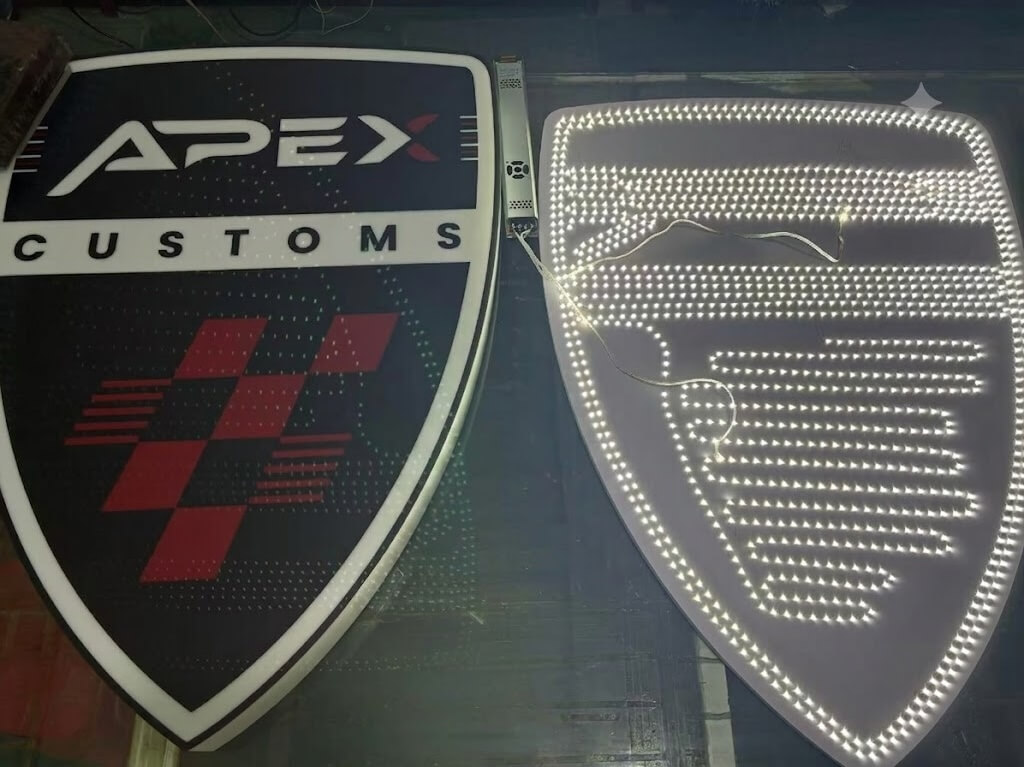

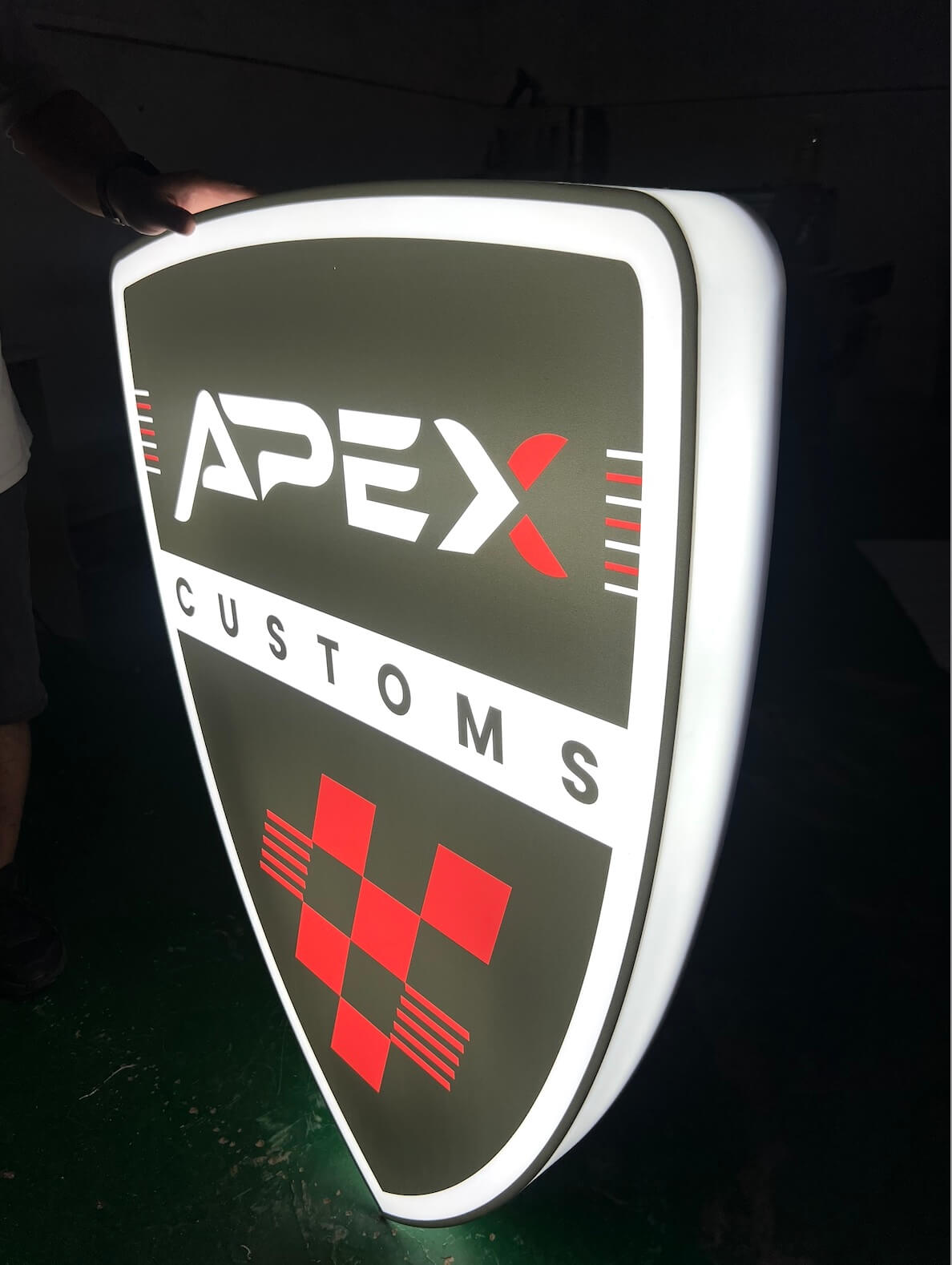

Before any commercial display leaves our Guangzhou production floor, every custom shield light box sign must pass mandatory 48-hour continuous darkroom burn-in electrical testing. We monitored thermal performance across the industrial Mean Well power core and verified zero lumen degradation or hot spots across the intricate checkerboard details.
4. Transpacific Ocean DDP Logistics to Manchester, NH

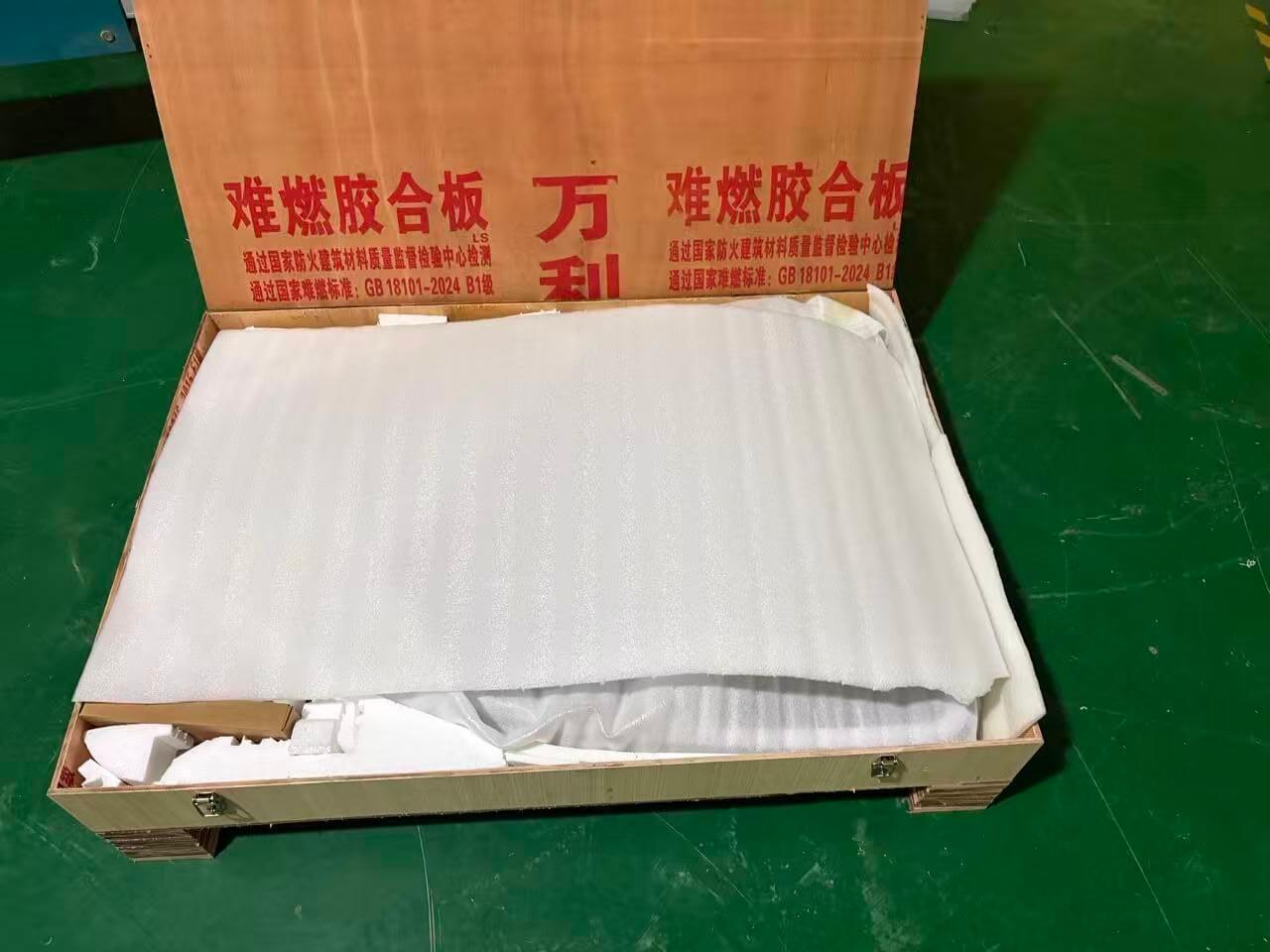

Managing international logistics for oversized custom acrylic fixtures requires robust planning. The completed shield sign, accompanied by its Mean Well commercial power transformer and pre-welded keyhole mounting brackets, was lined with high-density pearl cotton and sealed in a heavy-duty fumigated plywood crate. Operating under Ocean DDP (Delivered Duty Paid) terms, EndPoint Sign absorbed all maritime freight handling, customs clearance at the Port of Long Beach, and domestic freight trucking directly to Rizy’s workshop address in Manchester, NH—leveraging the same ocean container logistics network engineered for our Global Shipping & Freight Network and our New York restaurant commercial signage delivery.
5. When Things Go Wrong: 100% Factory Accountability & Free Replacement
Even with armored wooden crating, severe transit impacts can occur during final terminal forklift cross-docking. When the shipment arrived at Manchester NH, the outer crate had sustained crushing forces that cracked the front acrylic face and compromised the internal transformer circuit of the custom shield light box sign.
Many overseas suppliers dodge responsibility or drag clients through months of bureaucratic freight insurance disputes. At EndPoint Sign, our manufacturing philosophy is built on absolute integrity, matching the rigorous warranty backing we provide on our Michigan luxury spa illuminated signs.
"As a factory owner who has been manufacturing commercial signs for over 20 years: whenever an issue arises, we will never avoid it or run away from our responsibility. We are completely remaking a brand-new sign for you today—100% free of charge."
Our production team immediately initiated a full remanufacture of the 3.5 ft shield signbox, reinforcing internal corner gussets and dispatching a brand-new, factory-tested replacement directly to Apex Customs via express logistics.
6. Complete Project Specifications Summary
| Project Parameter | Technical Specification |
|---|---|
| Client / Brand | Rizy M. / Apex Customs |
| Installation Site | Commercial Plaza, Manchester, NH 03103, USA (Indoor Garage Display) |
| Product Category | Custom 3D Shield Acrylic LED Light Box Sign |
| Overall Dimensions | 2.55 ft Width × 3.50 ft Height × 3.15 in Depth (78 × 107 × 8 cm) |
| Face & Graphic Material | 4mm Cast Optical Acrylic with Multi-Layer Double-Pass UV Cured Graphics |
| Illumination System | IP67 Waterproof 6500K Pure White LED Module Array (Front & Return Dual Glow) |
| Power Equipment | Mean Well 110V–240V Commercial Rainproof Transformer (UL-Compliant) |
| Mounting Hardware | Rear Pre-Welded Concealed Keyhole Brackets for Flush Wall Mounting |
| Shipping & Guarantee | Ocean DDP Door-to-Door + 100% Transit Insurance & Free Remake Guarantee |
7. Why Automotive Garages Choose Factory-Direct Custom Light Boxes
- Custom Architectural Shapes: We fabricate complex shield contours, hexagonal crests, and circular emblems tailored to your automotive brand.
- Dual-Luminous Presence: Make your garage or showroom glow with brilliant front and side edge halo illumination that looks stunning in photos and videos.
- Direct Factory Pricing & 3-Year Warranty: Save 40% to 60% compared to domestic sign brokers while retaining direct-from-manufacturer replacement protection on your custom shield light box sign.
8. Frequently Asked Questions (Custom Shield & Crest Signs)
How much does a custom shield light box sign cost?
Most oversized commercial shield and crest light boxes range between $750 and $1,900 USD depending on dimensions, depth, and dual-emission specs. This 3.5ft Apex Customs sign was priced direct from factory with full packaging and DDP ocean shipping included.
What happens if a custom sign arrives damaged during overseas shipping?
At EndPoint Sign, we operate under a 100% free remake policy. If transit damage occurs during freight or final delivery, we remanufacture a brand-new sign immediately at zero extra cost to the client.
What is the turnaround time for a custom shaped light box to the USA?
Factory production takes 5 to 7 working days following CAD blueprint sign-off. DDP ocean container freight takes 18 to 22 calendar days with final liftgate truck delivery to your door.
What does DDP shipping include for US buyers?
Delivered Duty Paid (DDP) covers the entire transport chain: ocean freight, US customs clearance, import tariffs/duties, bond filing, and final liftgate delivery with zero hidden fees on arrival.
Do I need a licensed electrician to install this light box?
No. The system runs on safe 12V DC power and features rear pre-welded keyhole mounting brackets and a UL-compliant Mean Well power supply that plugs into a standard 110V wall outlet.
