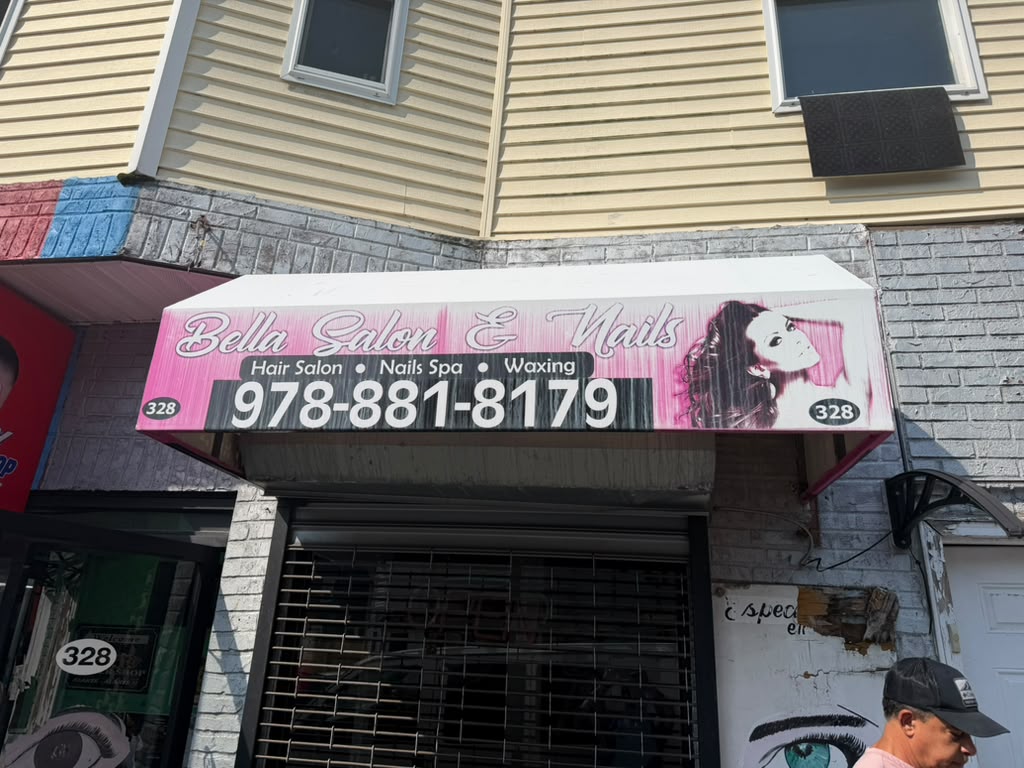

Installing a custom seg fabric light box is an affordable way to modernize any building facade. It provides borderless face illumination and attracts retail foot traffic. In July 2026, Carlos (Papo) contacted EndPoint Sign on WhatsApp. He needed to replace an old vinyl awning for Daliza's Hair & Nail Salon in Lawrence, Massachusetts (Lawrence, Massachusetts).
This case study explains how our factory built a slim aluminum light box over an existing roll-up security gate. First, we refined the logo artwork for high-definition UV textile printing. Next, we assembled an IP67 LED grid and performed 24-hour darkroom burn-in tests. Finally, we shipped the turnkey unit straight to Massachusetts. You can also explore more retail projects in our commercial signage portfolio case studies.
1. Engineering a Custom SEG Fabric Light Box Over an Existing Gate Frame
Retail store owners often face a common problem. They want modern lighting but wish to avoid costly wall repairs or moving security gate boxes. When configuring this custom seg fabric light box, Papo asked about clearance around his roll-up gate shutter.
Our structural engineers reviewed his building photos. We designed an 84"L × 30"H (7.0 ft × 2.5 ft) slim aluminum frame with rear mounting slots. This allowed the light box to anchor directly onto the existing awning steel tubes. As a result, Papo saved over 60% in local contractor labor costs.
"Will this affect anything? It's a gate. I would just need a long mount right?" Papo asked during our technical consultation. Our team confirmed: "You can anchor it directly onto your existing steel frame without structural changes. This saves on brackets and installation labor."
2. Concept Exploration: Refining Artwork into High-Definition Print
Papo provided initial artwork with scissors and glowing lightbulb graphics. Our pre-press team converted these files into vector layouts for backlit fabric printing. We used the same vector optimization standards applied to our Bobanest custom 3D acrylic sign project.
Next, we tested two background themes: bright pink and deep black. Papo selected the black background for its high nighttime contrast and modern street presence.

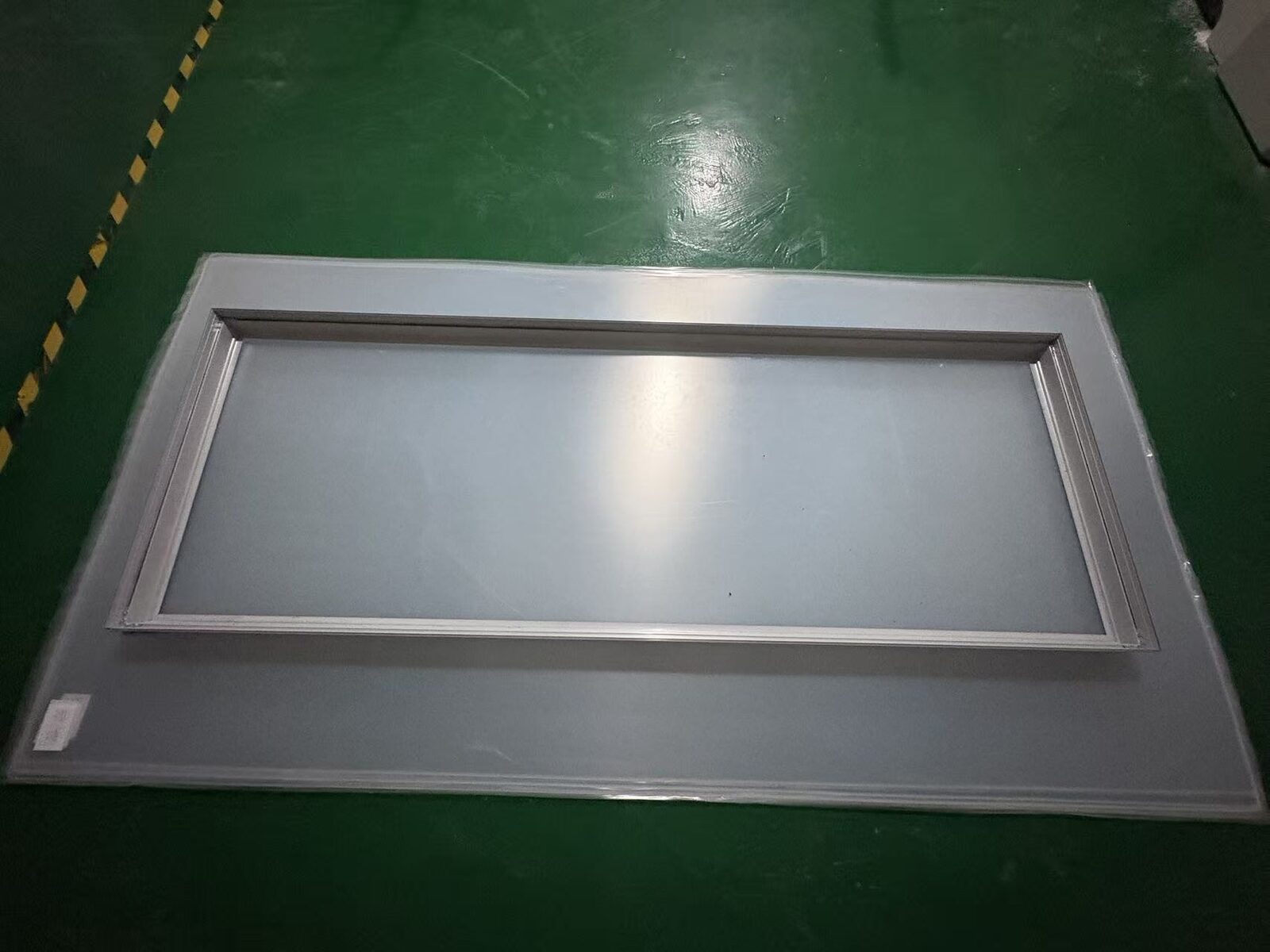

3. CNC Frame Extrusion & High-Density LED Matrix Assembly
Following blueprint approval, manufacturing began in our workshop using automated CNC tools:
- Architectural Aluminum Extrusions: Heavy-gauge 6063-T5 aluminum profiles miter-cut at 45 degrees, following the metal framing standards in our 3D channel letter sign manufacturing guide.
- Solid Composite Backplate: 3mm aluminum composite backing plate that provides wind resistance and heat dissipation for cold New England weather.

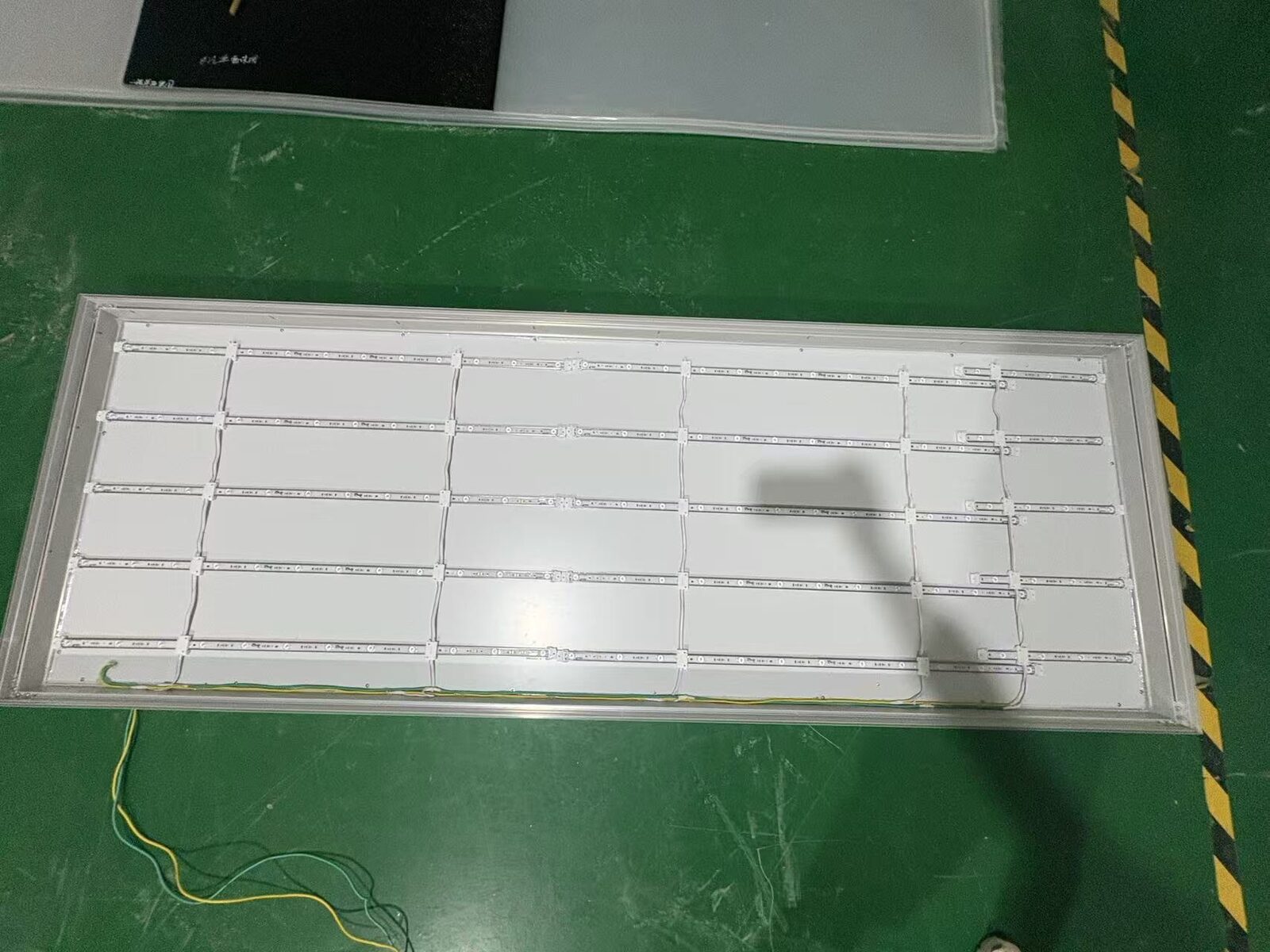

- Lattice Backlight Array: Waterproof DC12V 6500K pure white LED modules arranged in an even grid to eliminate dark shadows on the fabric face.
4. Darkroom Illumination & 24-Hour Continuous Burn-In Testing

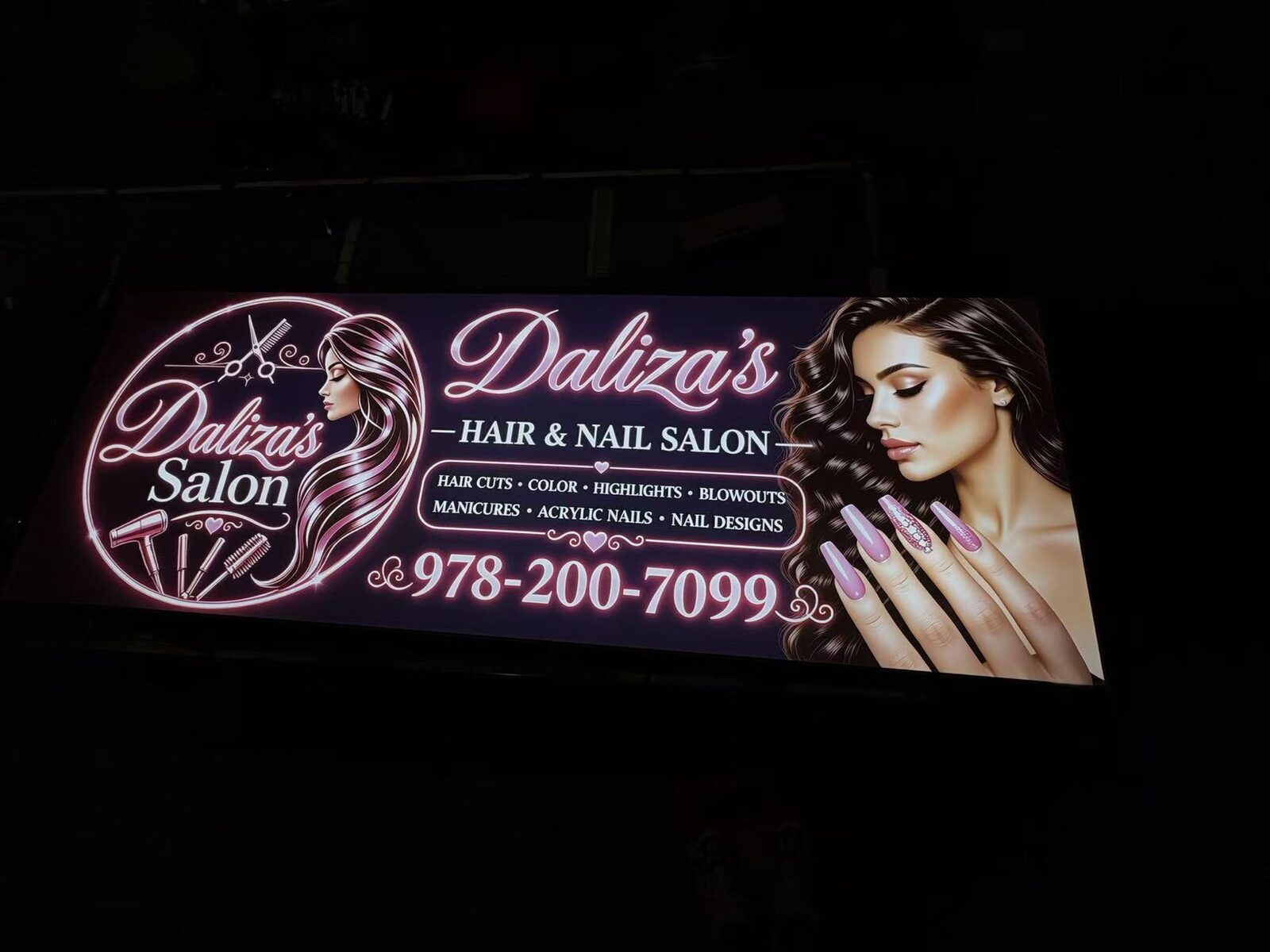

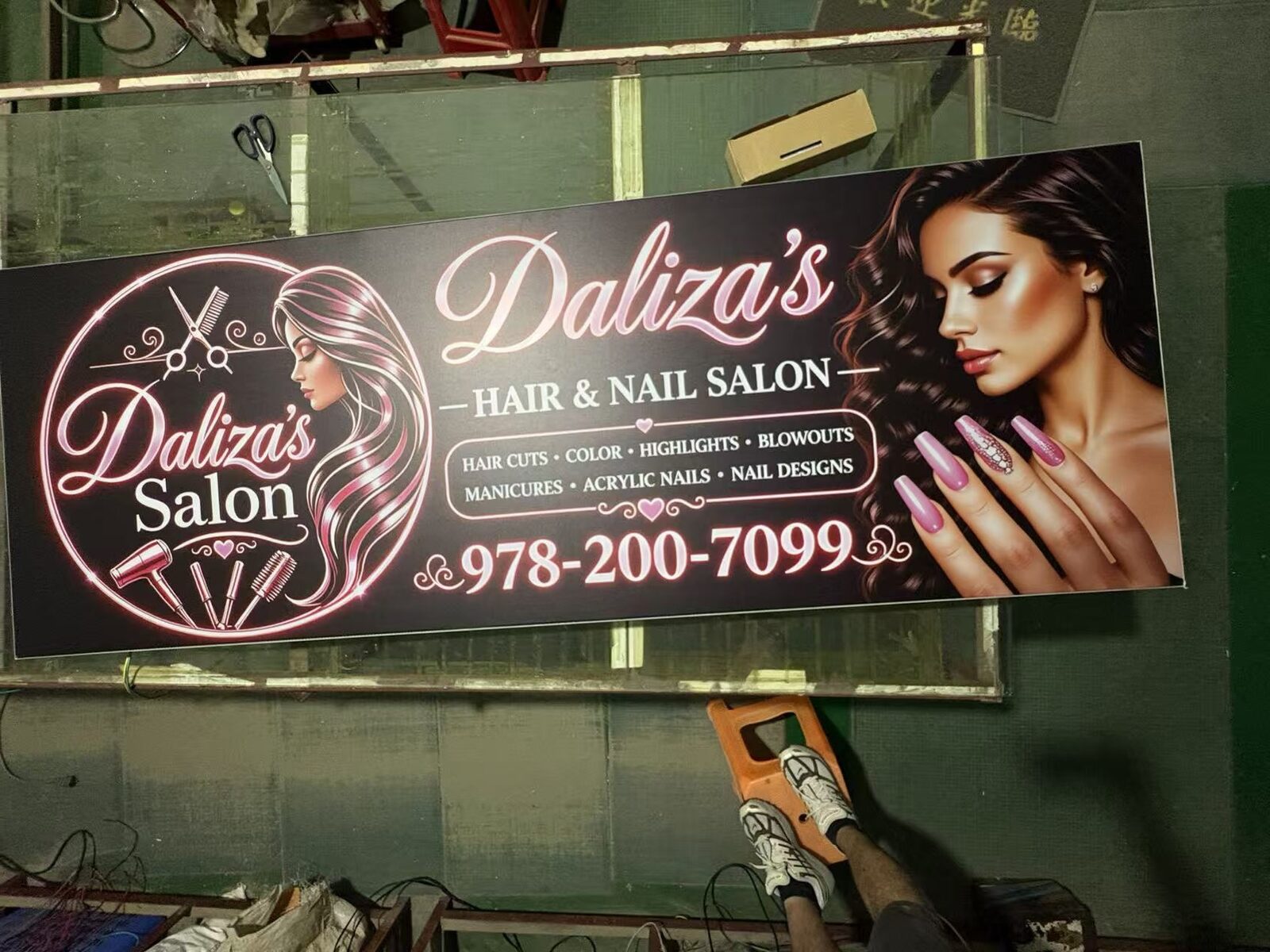

Every custom seg fabric light box undergoes strict quality testing before packing. We conducted a 24-hour darkroom electrical burn-in test. This step confirmed low operating temperatures on the rainproof Mean Well driver and verified zero fabric sagging under continuous operation.
5. Tool-Free SEG Tension Fabric Installation Demo
Silicone edge graphics offer a major advantage: easy graphic replacement without tools. This modular system uses pre-wired components, similar to the backer board design in our Not Polish dynamic RGB backlit sign case study. A thin silicone bead is sewn into the fabric edge and presses directly into the frame channel by hand.
Before packaging, our engineer recorded a short video demonstration. It shows how easily the fabric locks into place without requiring specialized technicians:
6. Export Packaging, DDP Sea Logistics & Free Spare Graphic Included

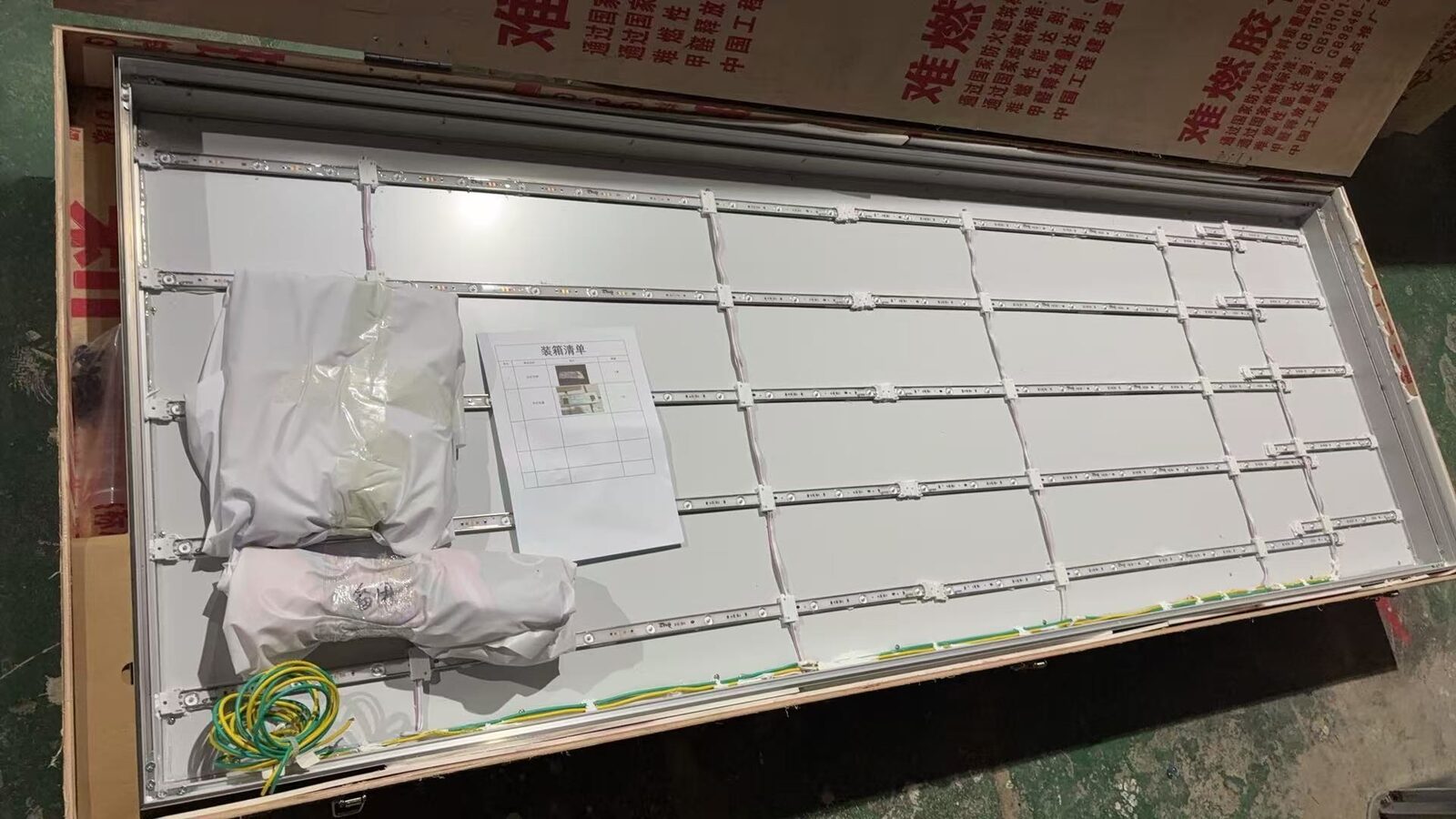

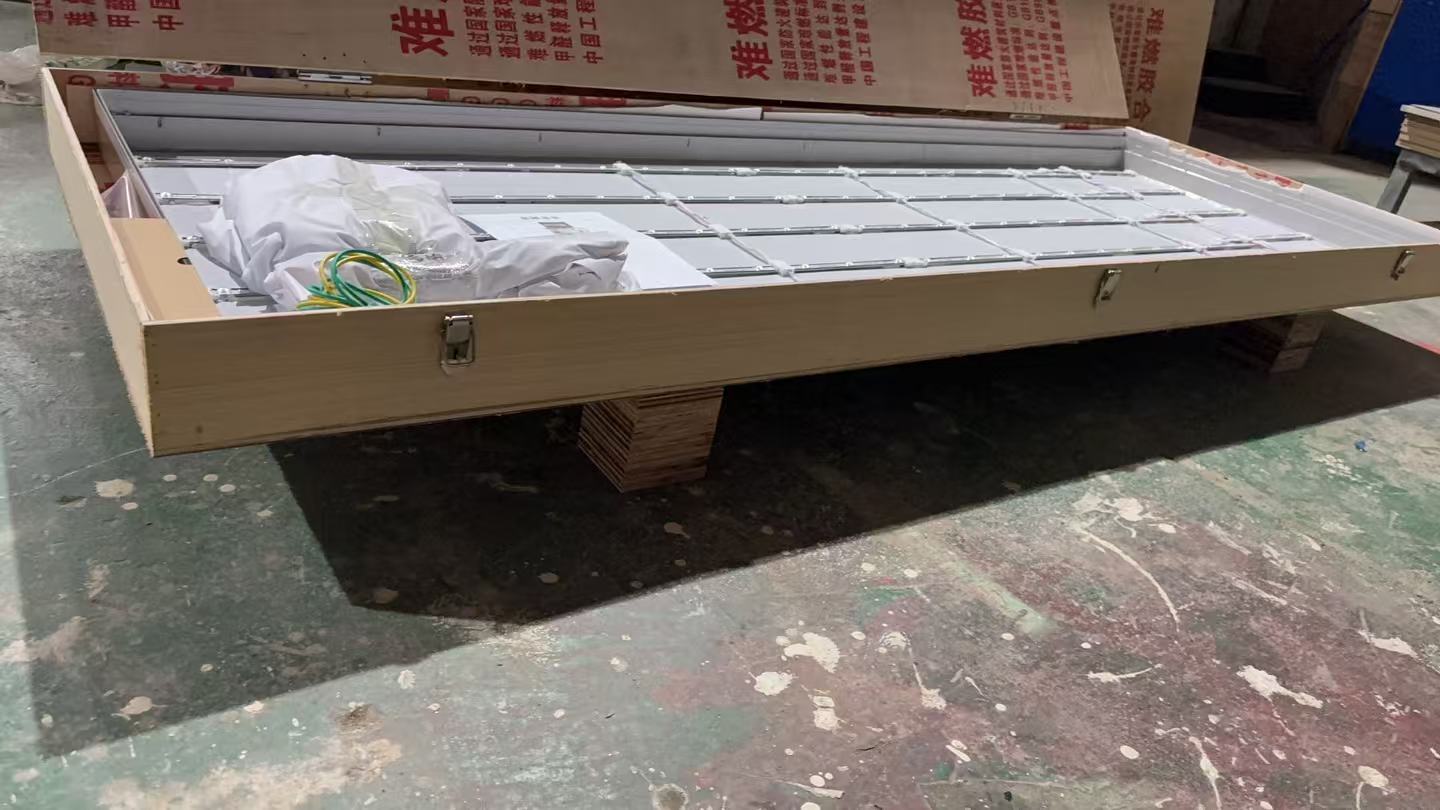

For ocean shipping, we wrapped the aluminum frame, 12V rainproof driver, and mounting screws in thick pearl foam. Then, everything was sealed into a reinforced wooden crate.
We shipped the order via Ocean DDP (Delivered Duty Paid). EndPoint Sign managed ocean freight, US customs clearance, tariffs, and liftgate delivery to Lawrence, MA. This matches the reliable shipping service used in our New York restaurant commercial signage delivery.
In addition, our team included 2 full sets of UV fabric prints (1 main + 1 free spare) inside the crate. This gives Daliza's Salon a backup graphic for future seasonal updates. Deciding between a light box and individual letters? Our guide on channel letters vs light box breaks down the trade-offs.
7. Complete Project Specifications Summary
| Project Parameter | Specification Details |
|---|---|
| Client / Business | Carlos (Papo) / Daliza's Hair & Nail Salon |
| Installation Location | Commercial District, Lawrence, Lawrence, Massachusetts, USA |
| Sign Dimensions | 84 inches Length × 30 inches Height (7.0 ft × 2.5 ft, Single-Sided) |
| Graphic Material | High-Definition UV Backlit Tension Fabric with Silicone Gasket (SEG) |
| Frame Construction | Heavy-Duty Architectural 6063-T5 Aluminum Extrusion with Internal Corner Locks |
| Illumination System | High-Lumen IP67 Waterproof 6500K LED Backlight Matrix Array |
| Power Supply | Industrial Rainproof DC 12V Transformer (UL-Compliant) |

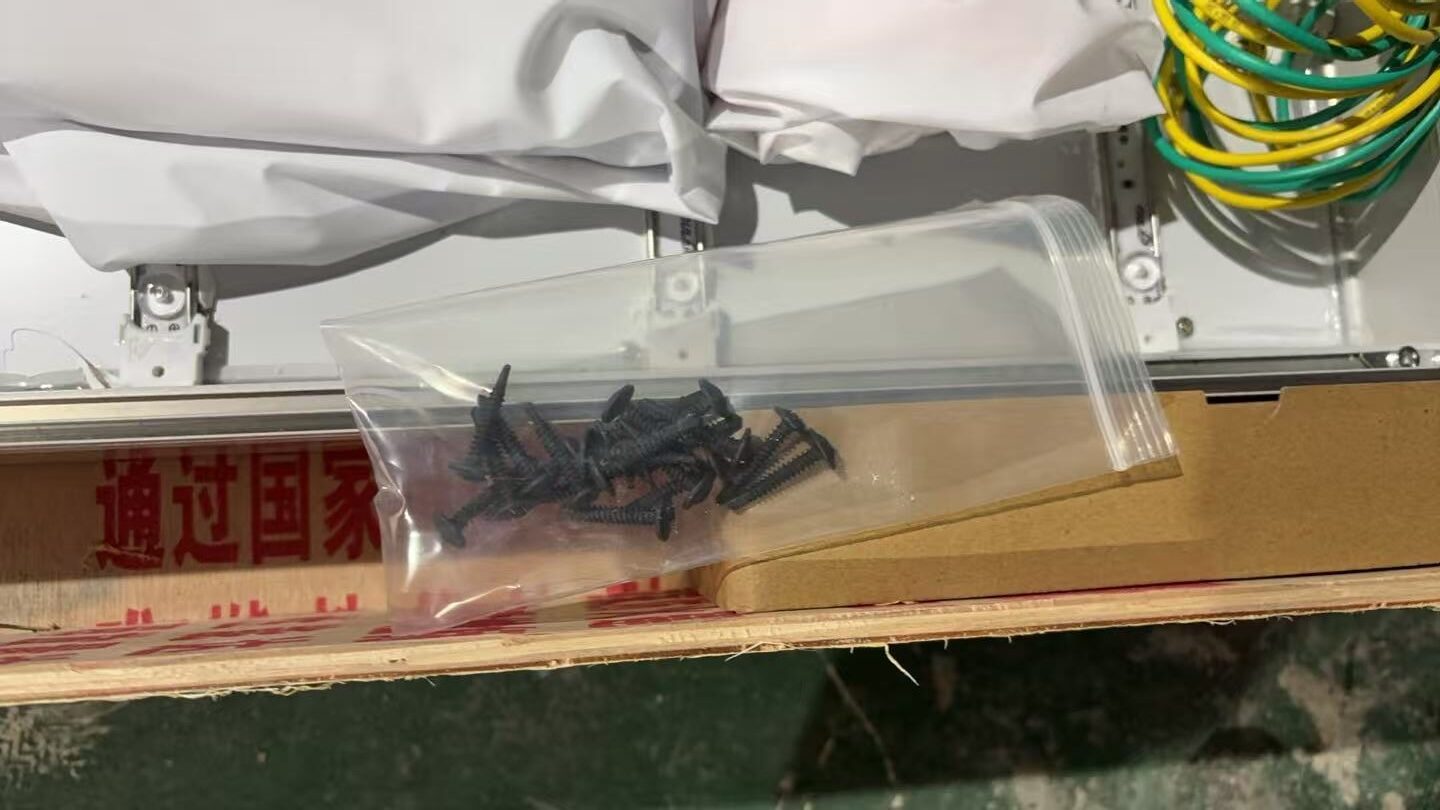

| Included Accessories | 2× UV Tension Fabrics (1 Main + 1 Free Spare), Self-Tapping Fasteners |
| Packaging & Logistics | Reinforced Fumigated Export Wooden Crate + Ocean DDP Door-to-Door Delivery |
