Case Study: Custom Dynamic RGB Backlit Sign for Not Polish Live Selling Studio in El Cajon, CA

Designing a custom dynamic RGB backlit sign for modern e-commerce and beauty retail environments requires precision engineering far beyond standard storefront displays. With high-definition live streaming driving millions in sales, commercial brands require background signage that looks razor-sharp, reflects brand colors accurately, and avoids harsh video camera sensor blowout.

Recently, Endpoint Sign partnered with Mikey Wilson from Not Polish—a prominent professional nail supply and nail art lifestyle brand based at El Cajon, California. The goal was to engineer a high-impact, camera-optimized 3D halo-lit commercial sign tailored specifically for their live broadcast selling room.

Figure 1: The live broadcast setting at Not Polish in El Cajon, CA, demanding a luminous architectural backdrop.

1. Studio Challenges in Designing a Custom Dynamic RGB Backlit Sign

When Mikey first reached out through our social media showcase, he provided vector art for the brand's iconic identity: notpolish NAIL DESIGN. Initial discussions centered around standard static front-lit or backlit channel letters from our broader custom commercial signage portfolio. However, broadcast studio environments introduce unique optical and electrical challenges:

• Preventing Camera Overexposure: Traditional single-color white LEDs operating at full lumen output often wash out on studio webcams, blurring brand typography into a blinding white glare.
• Multi-Color Chromatic Flexibility: A premium custom dynamic RGB backlit sign provides the versatile lighting needed to match various seasonal nail polish product launches, while retaining the capability to switch instantly to a steady single color without flickering.
• Zero-Hassle Assembly: Wall mounting 17 individual letters separately would require drilling dozens of holes through drywall, routing low-voltage cables in tight cavities, and hiring local electrical contractors at steep hourly rates in Southern California.

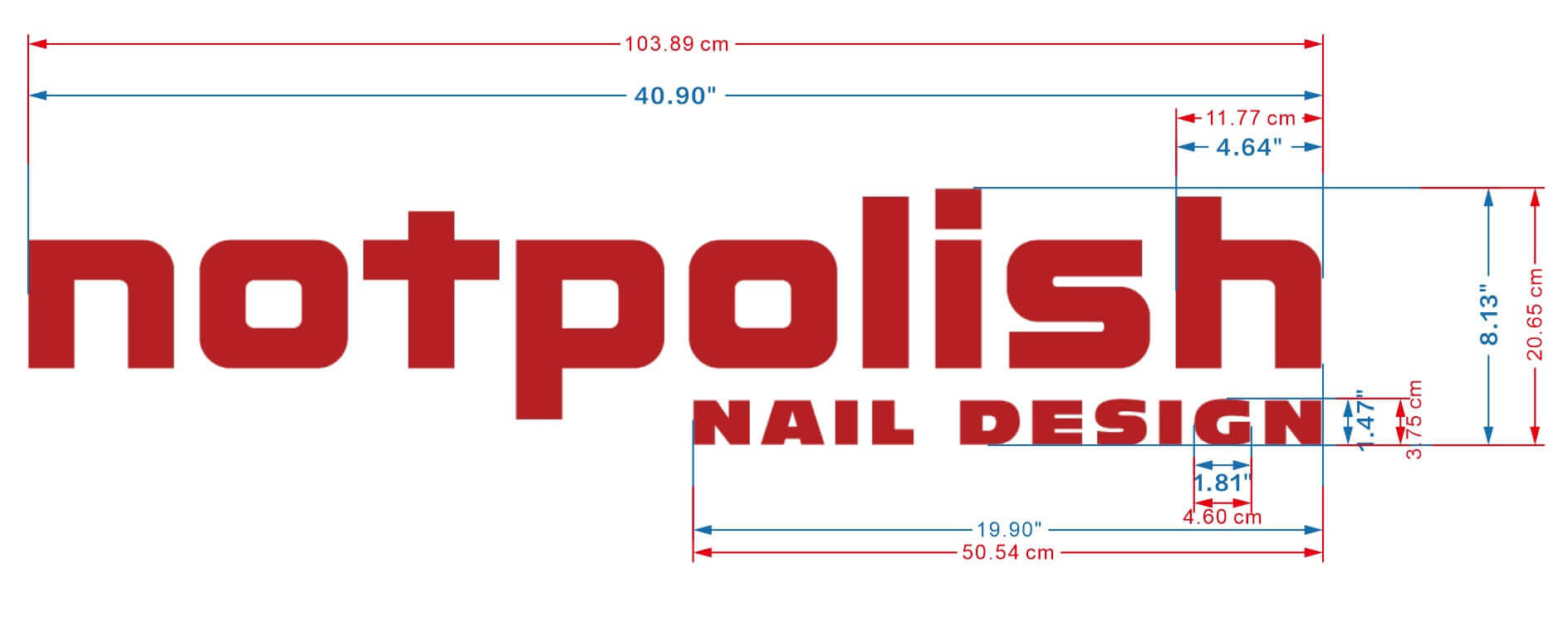

Figure 2: 1:1 Vector CAD scale drawing verifying letter spacing (40.90" width).

Figure 3: Optical reference demonstrating crisp edge separation and clean halo reflection.

2. Engineering Proposal: Integrated Architectural Backer & Dynamic RGB Glow

To solve the installation dilemma and provide absolute optical clarity, the engineering team at Endpoint Sign drafted a specialized Material and Effect Manual. Instead of supplying loose letters, we engineered an integrated solution built upon a solid 5mm milky white acrylic backplate.

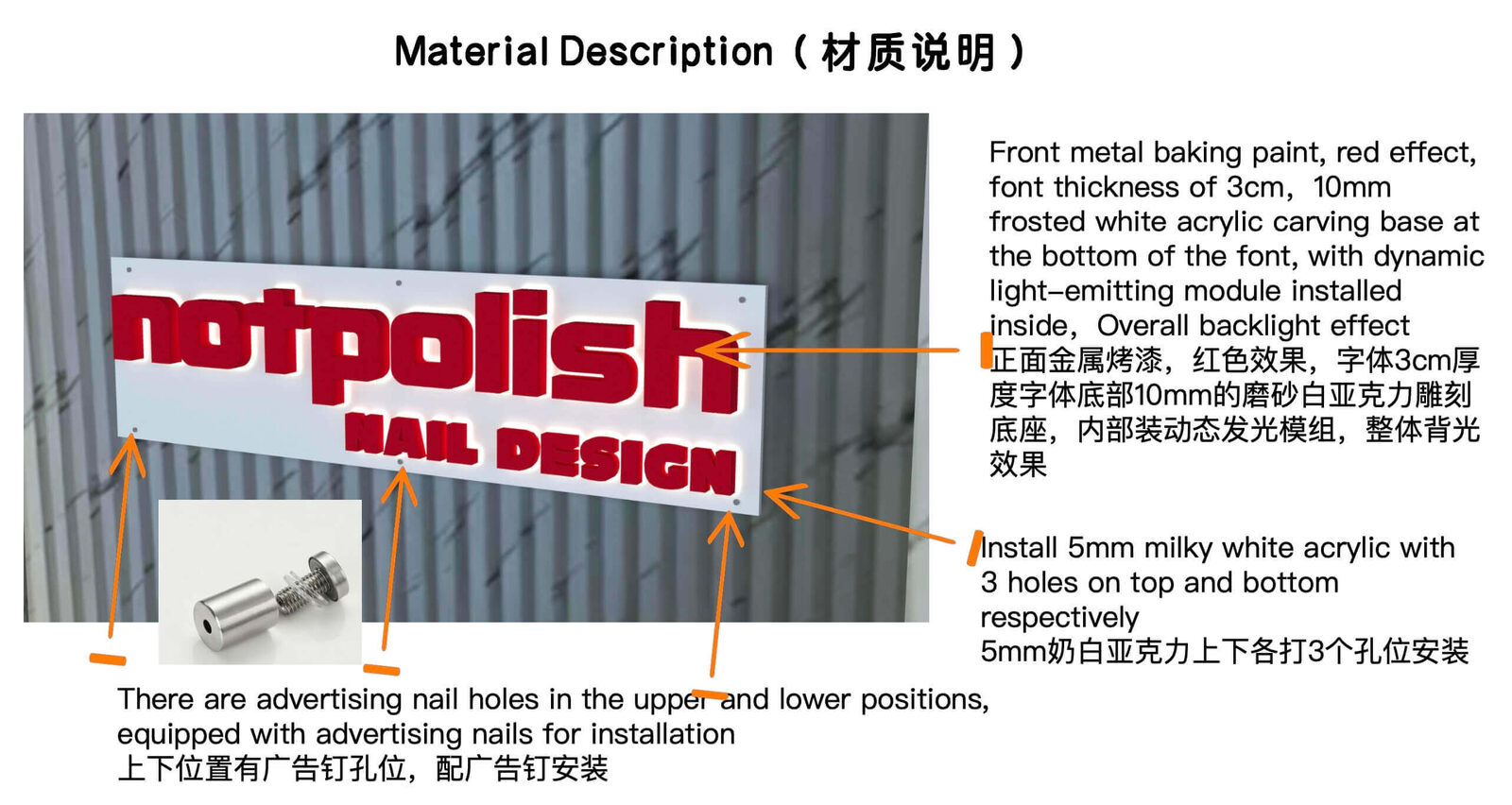

Figure 4: The finalized production manual sent to the client, detailing layer construction and standoff bolt positions.

This construction delivered three significant structural advantages:

1. Plug-and-Play Power Harness: All 17 letter returns are internally pre-wired and soldered behind the backer board. The end user simply hangs the panel using 6 stainless steel standoff bolts and connects a single 12V DC power plug—a simple modular method similar to the pre-assembled, tool-free setup showcased in our custom SEG fabric light box salon storefront case study.
2. Diffused Reflection Ground: The milky white acrylic surface acts as an ideal optical bounce plane, diffusing the dynamic RGB halo light smoothly without hotspot reflections.
3. Precision Typographic Alignment: The spacing between "notpolish" and the sub-headline "NAIL DESIGN" is locked in permanently at our CNC milling station.

3. Factory Fabrication: Precision CNC Laser Cutting and Electrical Wiring

Following final sign-off from Mikey's accounting team at notpolish.com and receipt of the project deposit, manufacturing commenced immediately at our Guangzhou factory.

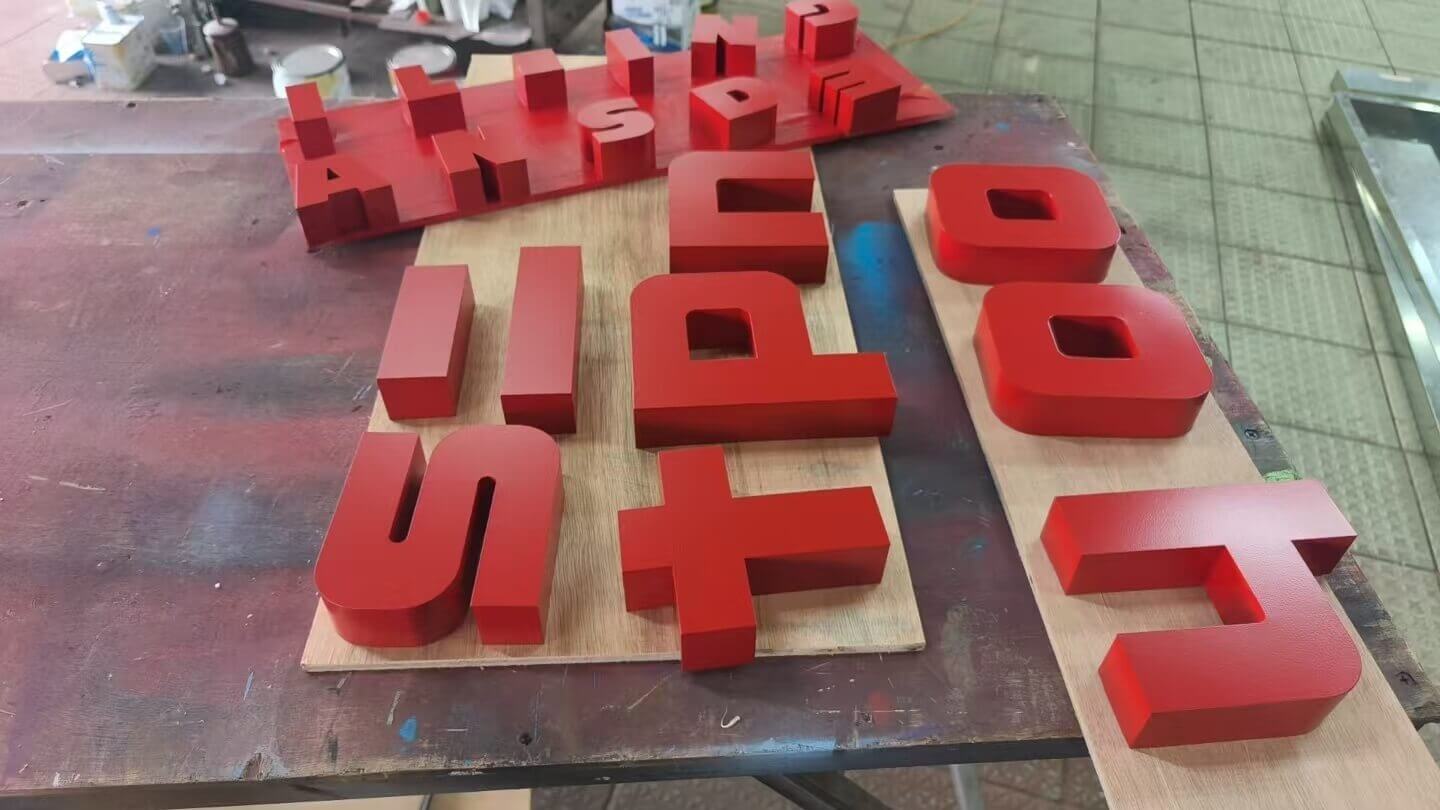

Figure 5: 3cm thick fabricated metal letter shells treated with high-temperature red baking paint.

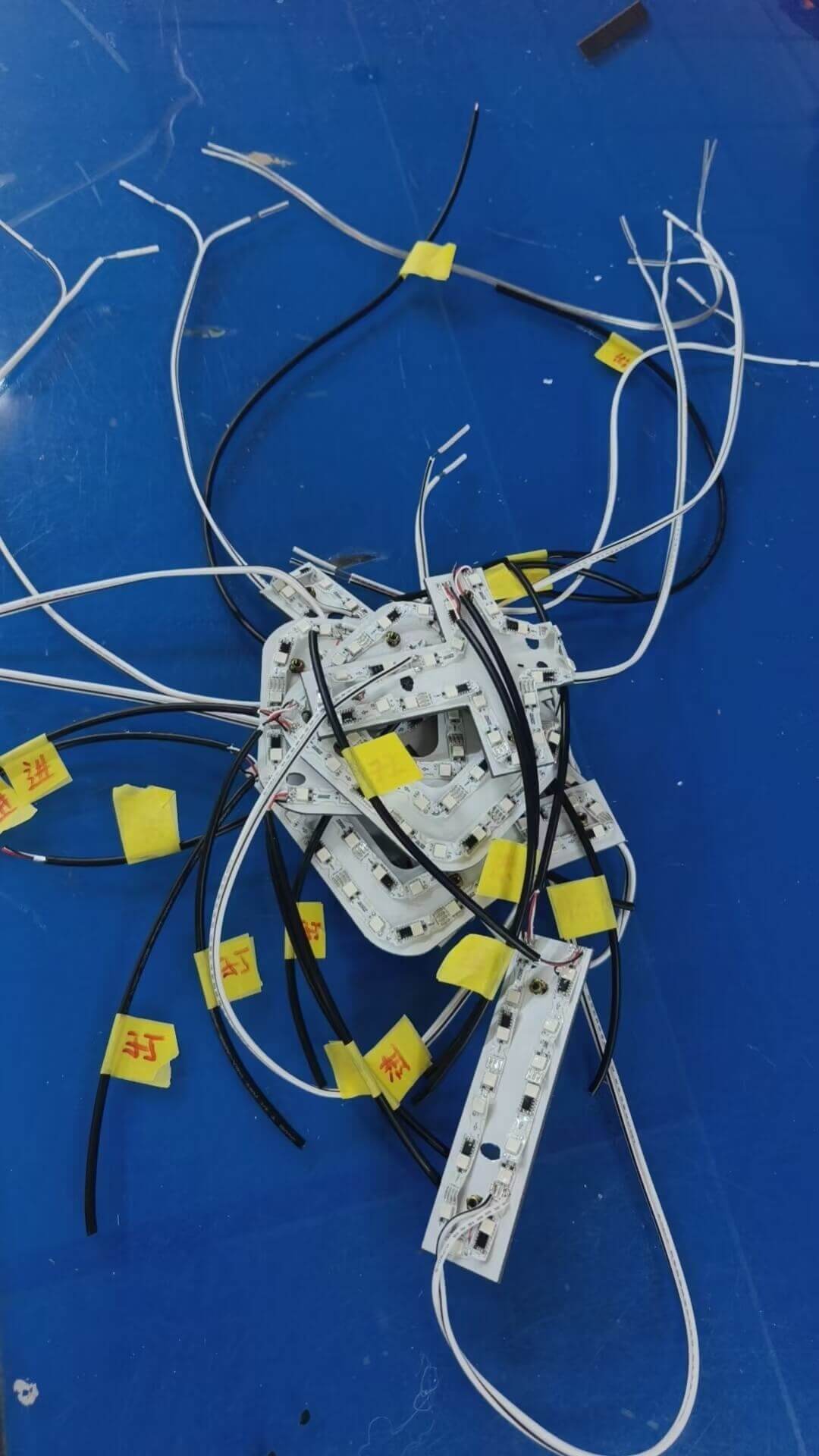

Figure 6: Custom low-voltage wiring harness and IC controller connections prior to sealing.

Step-by-Step Production Breakdown:

• 3D Letter Casing: Fabricated with heavy-gauge stainless steel returns (30mm depth) and laser-welded seams, coated with custom automotive-grade matte red baking enamel.
• Acrylic Base Diffusers: CNC router-milled 10mm high-transmission frosted acrylic letter bases to create an ultra-smooth edge halo effect, utilizing the exact micro-tolerance subtractive milling standards seen in our custom 3D channel letter sign manufacturing guide.
• Digital IC LED Modules: Integrated high-density addressable RGB LED light strips, fully shielded with thermal dissipation tape.
• RF Remote Dimming Integration: Programmed with dedicated radio-frequency controllers, enabling 0-100% stepless dimming and multiple dynamic flow modes.

4. Testing the Custom Dynamic RGB Backlit Sign (24-Hour Burn-In Verification)

Prior to international freight handover, every commercial display at Endpoint Sign undergoes a rigorous 24-hour continuous burn-in electrical test to eliminate diode failure and monitor power supply thermal performance.

Unlike the warm amber 3000K illumination engineered in our Michigan luxury spa halo illuminated sign case study, this project required complete versatility between dynamic rainbow chases and calming single-color backlighting.

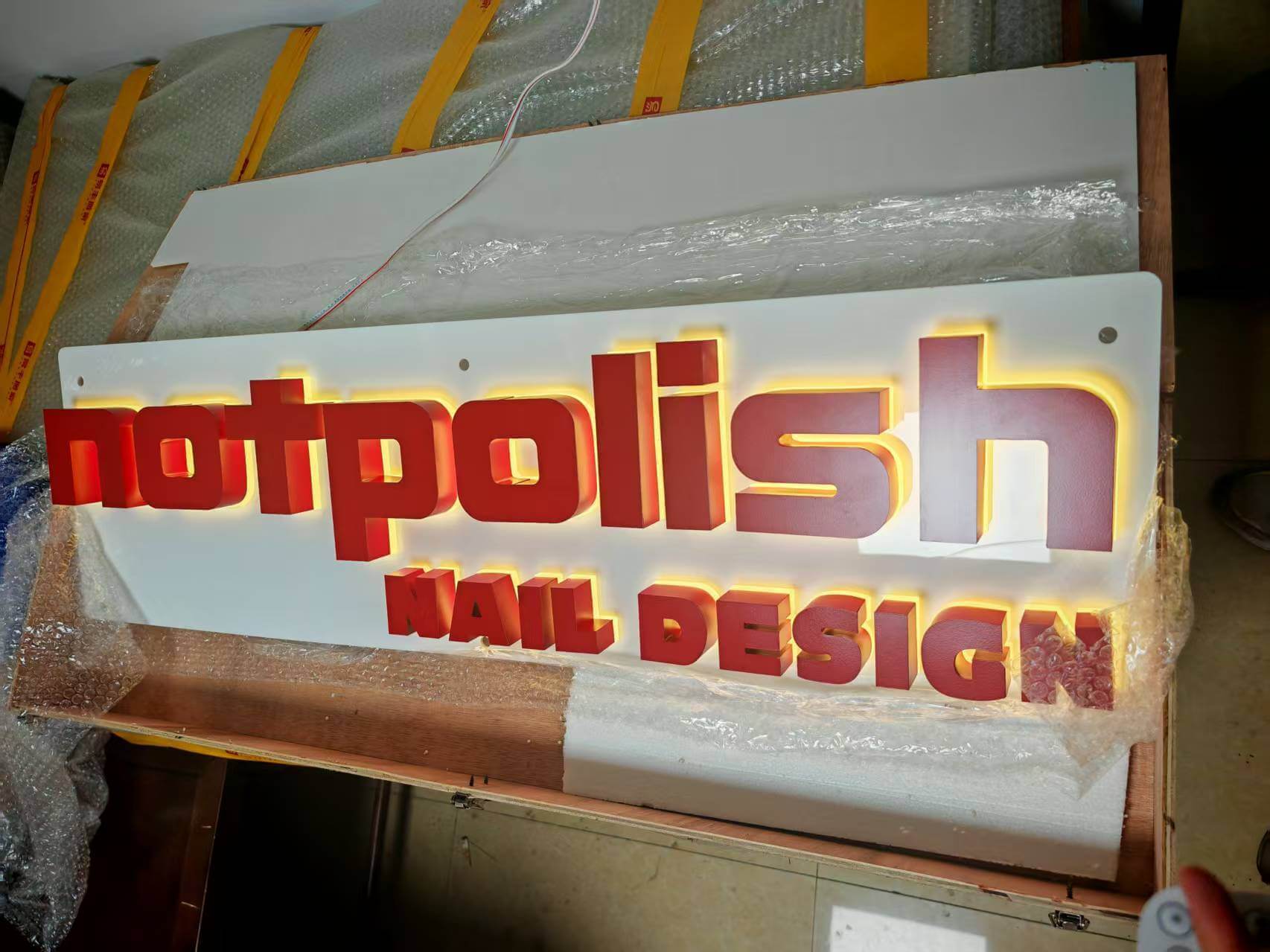

Figure 7: Ambient warm-amber single color test simulating natural studio conditions.

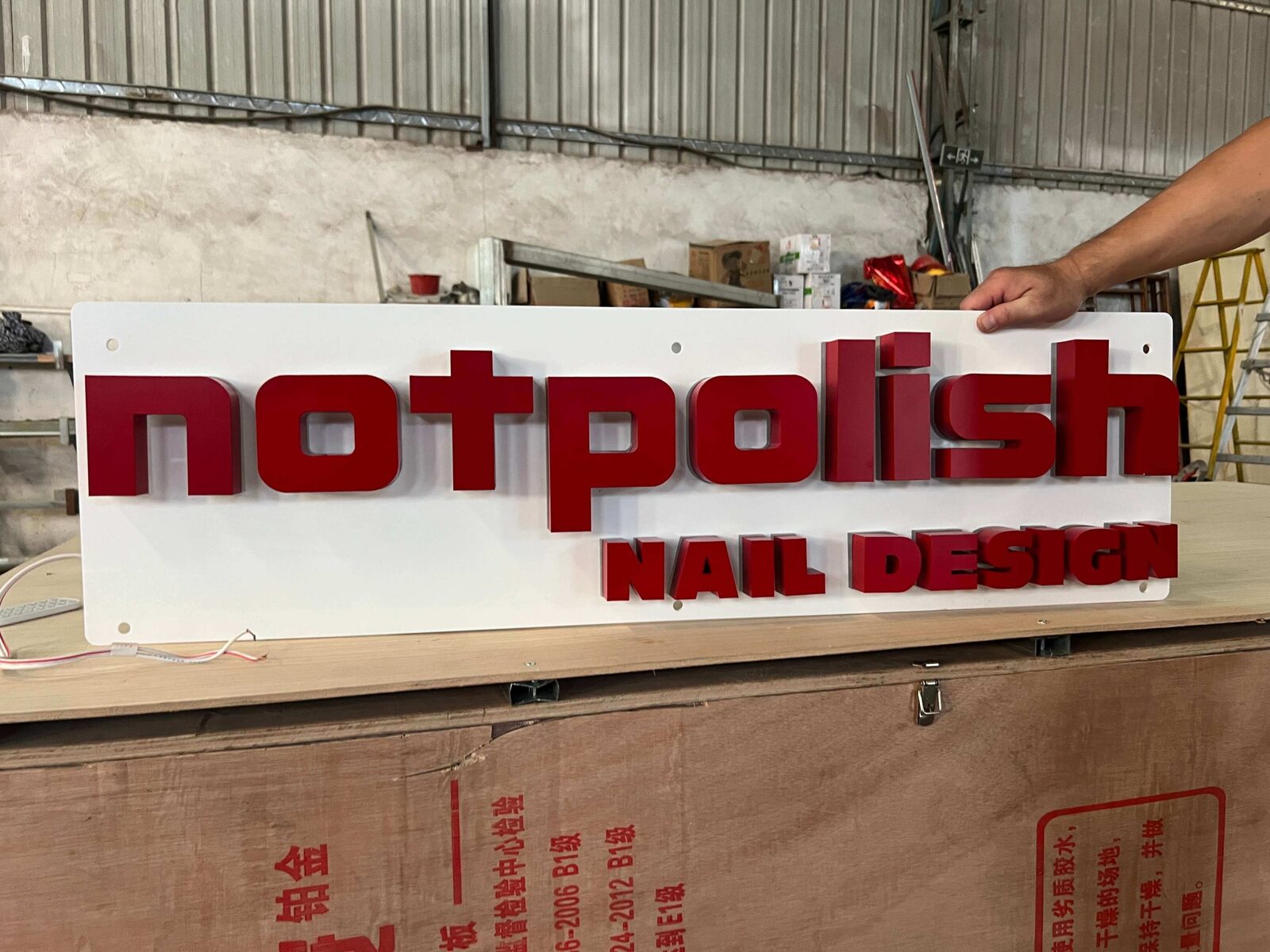

Figure 8: Daylight inspection verifying crisp lettering finish and zero paint blemishes.

Factory Video Quality Verification

Watch our engineering team test the multi-color flow, rainbow chasing sequences, and solid single-color dimming modes before crate packing:

Figure 9: Lead Engineer Yeliang performing the final luminescent verification of the Not Polish studio sign.

5. Technical Specifications Summary

6. Military-Grade Export Crate Packaging and DDP Sea Freight to California

Cross-border commercial signage demands robust packaging engineering to withstand oceanic transit, port handling, and domestic truck transport across the United States. To guarantee zero damage upon arrival in El Cajon, California, the sign was packed utilizing our military-grade protective protocol:

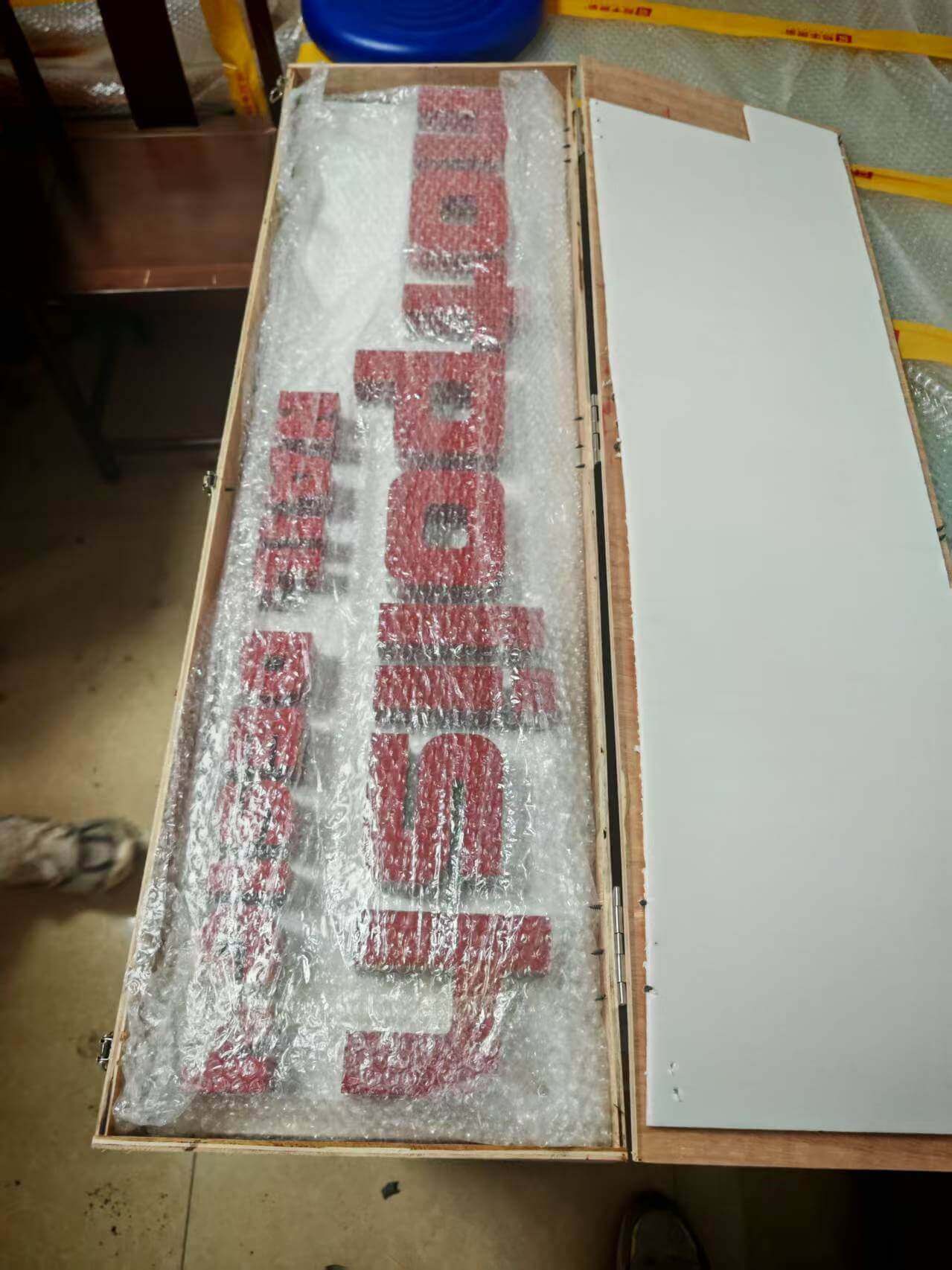

Figure 10: Multi-layer high-density EPE foam buffering delicate acrylic edges.

Figure 11: Sealed heavy-duty plywood crate ready for vessel loading (Tracking: YT2623101600305618).

• Interior Layering: Wrapped in electrostatic protective film and encased within 25mm thick form-fitting EPE shock-absorbent foam.
• Exterior Crate: Encased in solid 12mm plywood reinforced with perimeter steel corner bands, strictly compliant with international ISPM-15 export regulations.
• DDP All-Inclusive Logistics: Shipped via specialized container freight including customs bond filing, US import tariff clearance, and direct liftgate truck delivery to the client's commercial facility in San Diego County—following the same hassle-free sea logistics we established in our New York restaurant custom backlit sign project.
