App-controlled colour lighting — nail salon, CA
Colour control, factory testing and DDP delivery for an interior retail build.
Read the case study → 3D INFINITY MIRROR SIGNS · OPTICAL DEPTH DISPLAY · DDP TO USA
Custom 3D Infinity Mirror Signs, Built in Our Own Factory
3D infinity mirror signs and optical tunnel displays for retail interiors, bars and hospitality entrances — LED-lit mirror boxes built to your logo shape, sealed and crated for export, with a US plug-and-play adapter and a free 1:1 CAD mockup.
No cost, no obligation. Send your logo (AI / EPS / SVG / PDF), the finished size you want, and your full delivery address — street, city, state and ZIP.

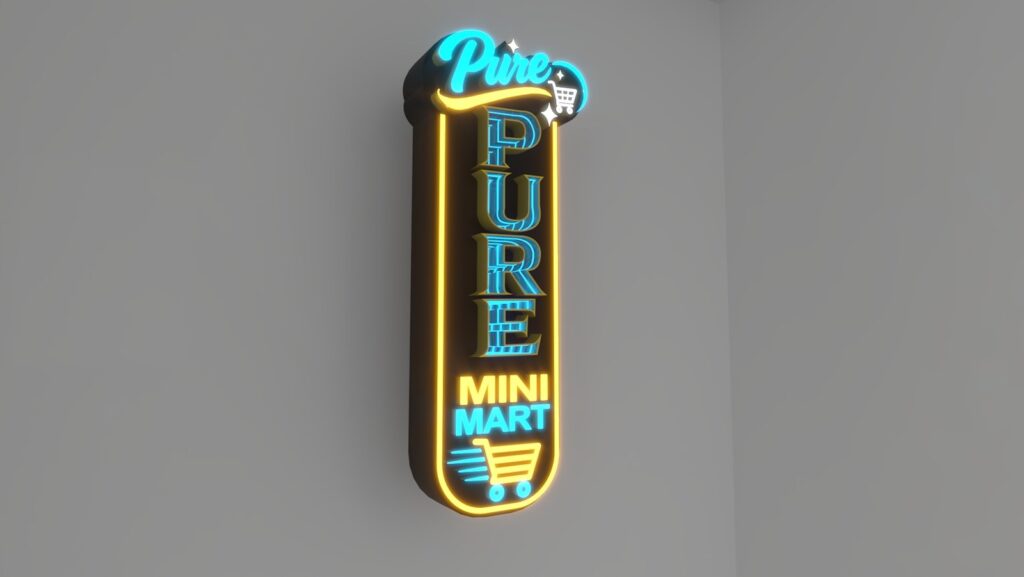

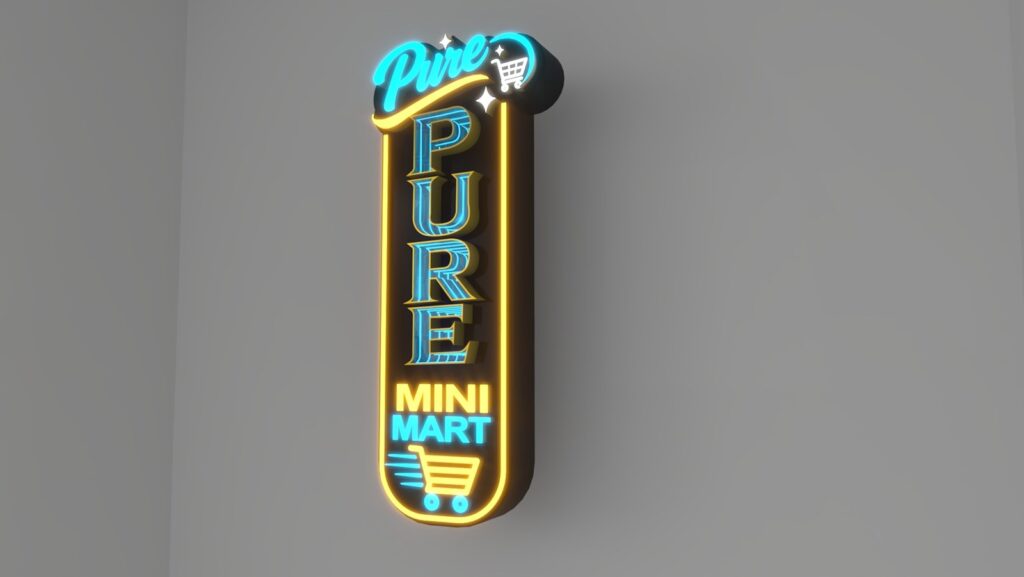

PURE infinity mirror sign
✓ Infinite tunnel depth ✓ Built to your logo shape ✓ Multicolour LED option ✓ Crated for export ✓ Turnkey DDP delivery

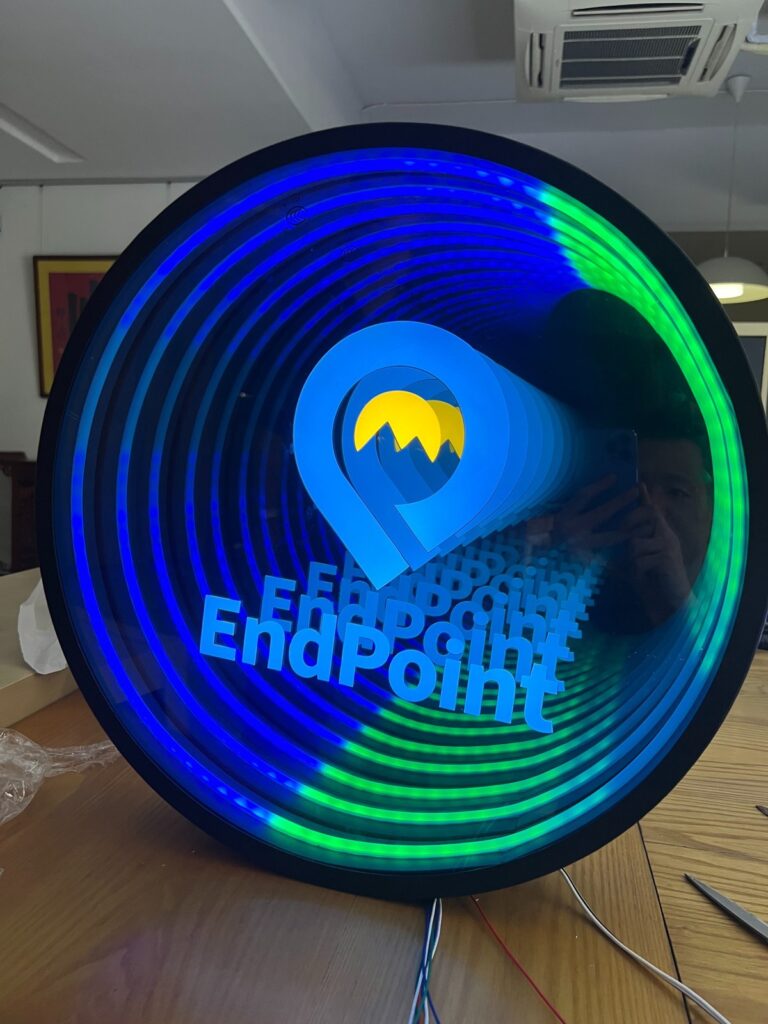

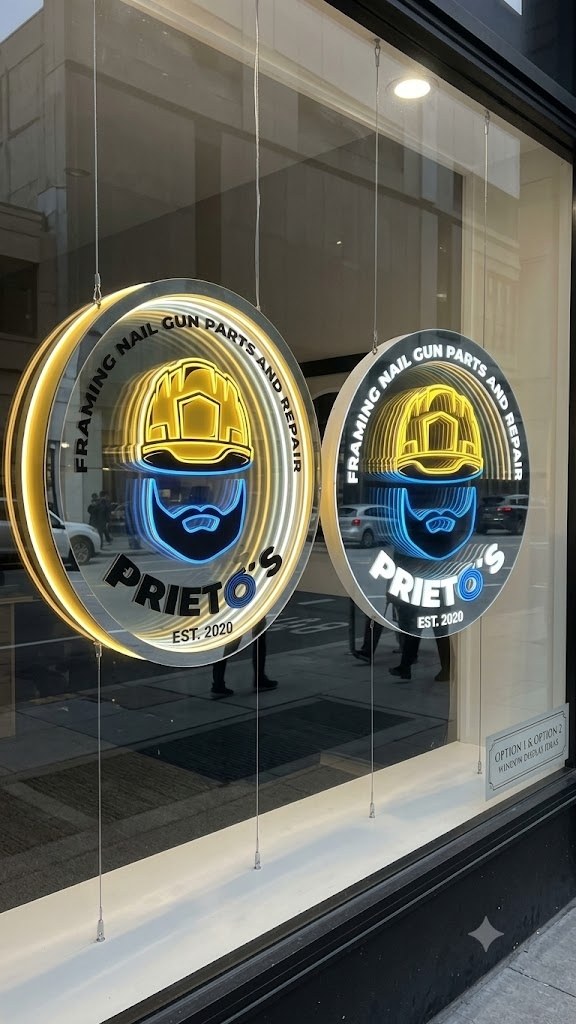

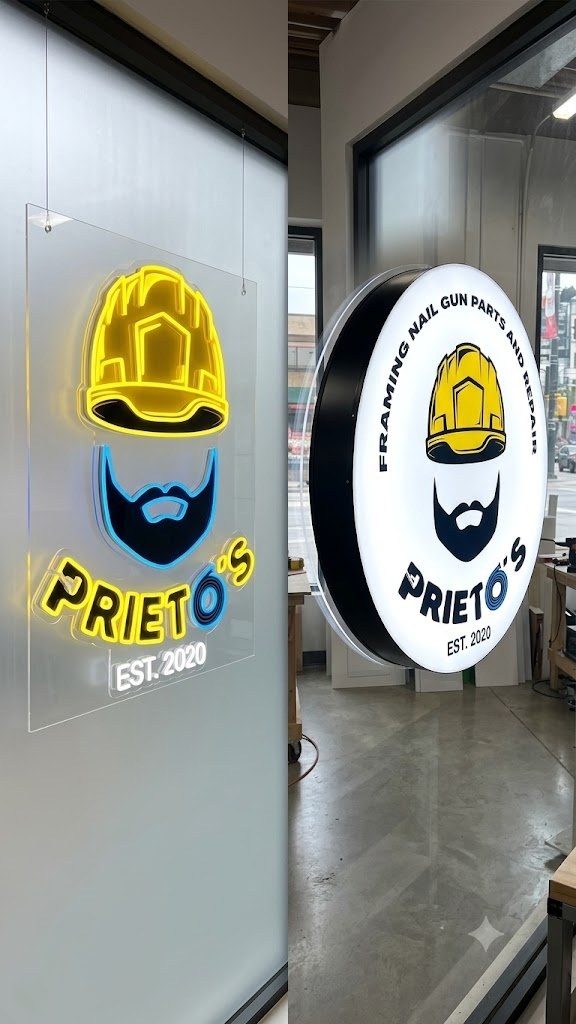

What 3D infinity mirror signs look like
Production process
Every sign follows the same route through our workshop: dimension drawing, lighting effect design, CNC cutting and assembly, a 48-hour lighting test, then timber-framed crating for export. You approve the drawing before we cut anything, and we send photos or video at each step.
1
Dimension drawing
2
Lighting effect design
3
Cutting & assembly
4
Lighting test
5
Export packing
How an infinity mirror effect is built
Two mirrors sit at the front and back of a shallow box, and an LED strip runs around the inside edge. The light bounces between the two surfaces, and each reflection appears smaller than the last — which is what creates the endless tunnel. We cut the box to your logo outline so the effect appears inside your own shape.
Two-way mirror + mirror back
A partially reflective front surface and a fully mirrored back create the repeat.
Edge-lit LED ring
The strip around the inside edge sets the colour and the speed of the effect.
Built to your outline
Boxes are CNC-cut to your logo or symbol, not just to a rectangle.
Lighting modes you can run
Tell us the colour or effect you want as the default and we load it at the factory; most builds ship with an app-controlled RGB controller so you can change it later.
Chasing
Rainbow flow
Colour fade
Breathing
Wave
Running border
Two-colour mix
One fixed colour
Single-colour builds (white, warm white, brand colour) use a fixed driver and cost less than RGB builds.
What's inside an infinity mirror sign
Acrylic mirror assembly
Optical two-way mirror at the front, mirrored back panel, both sealed in the frame.
CNC-cut housing
Profile cut to your logo outline, painted or powder-coated to the finish you choose.
UL-listed LED + controller
12V low voltage with a US plug-and-play adapter, app control on RGB builds.
What a factory-direct infinity build gets you
Infinity signage is unforgiving: a millimetre of misalignment shows in the reflection, and shipping a mirror box requires proper crating. We build and test the effect in our own workshop, then crate it so it arrives flat and undamaged.
Effect tested before shipping
Every build is run for 48 hours and filmed for your approval.
Cut to your artwork
We redraw the outline from your file so the effect follows the logo, not a box.
Colour matched to brand
LED colour matched to your Pantone reference or left as a full-spectrum RGB build.
UL-listed components
UL-listed LED modules and drivers, 12V low voltage, US plug-and-play.
Export-grade crating
Foam-lined, timber-framed crates sized for mirror panels and glass.
Turnkey DDP delivery
Freight, US import duties and final delivery are all inside our quoted price.
Infinity builds we run most often
Logo infinity boxes
Your logo or symbol cut out and filled with an endless light tunnel.
Infinity tunnels & portals
Larger wall features and entrance portals for venues and events.
Wall-mounted infinity art
Rectangular and shaped art panels for interiors and feature walls.
Counter & table displays
Smaller self-contained units for reception desks and product displays.
How much do 3D infinity mirror signs cost?
Factory quote in 24 hours — free 3D mockup and DDP price before you pay.
Infinity mirror signs are priced per build, because the depth, shape and LED count change with your logo. Send your artwork and the space you have and we return a line-item factory price with the mockup — usually within 24 hours.
- Overall size — a counter display and a wall portal use very different mirror areas
- Outline complexity — simple shapes cut faster than fine logo detail
- Lighting — single-colour LED builds cost less than full RGB with app control
- Crating and shipping — mirror and glass need reinforced timber crates, quoted inside the DDP price
Send your artwork, the finished size and your delivery address and we return a line-item DDP price with a mockup of the effect.
Specifications
| Size | Built to order; typical wall builds 300mm – 1,500mm, larger as sections |
|---|---|
| Depth | 60mm – 200mm depending on the tunnel depth you want |
| Outline | CNC cut to your logo, symbol or rectangular panel |
| Mirror | Optical two-way acrylic front, mirrored acrylic back, sealed in frame |
| Lighting | Edge-mounted LED strip, single colour or addressable RGB |
| Control | App + WiFi controller on RGB builds, pre-programmed at the factory |
| Power | 12V low voltage with a US plug-and-play adapter |
| Finish | Painted or powder-coated frame in your chosen colour |
| Mounting | Wall cleats or standoff fixings with a 1:1 paper template |
| Typical lead time | 7 working days production after artwork approval + 10–14 days DDP air |
How ordering works
- Send your files and delivery addressVector logo (AI, EPS, SVG, PDF), the finished size you want, a photo of the wall or fascia, and your full delivery address — street, city, state and ZIP.
- Free 3D mockup and exact DDP priceOur engineer returns a 1:1 scale drawing and the DDP cost calculated to your address — freight, duties and delivery included — usually within 24 hours.
- Approve and pay the depositNothing is cut until you approve the drawing. 50% deposit, balance after the factory photos.
- Production, burn-in, DDP delivery7 working days production, 48-hour burn-in, then crated and delivered to your address.
See the full case studies
Double-sided RGB sign box — liquor store, CA
Addressable colour control inside a sealed illuminated box.
Read the case study →
Halo lit logo sign — Betta USA Aquatic
Edge-lit detailing and hidden fixings for a premium storefront logo.
Read the case study →Frequently Asked Questions
How much do 3D infinity mirror signs cost?
Infinity mirror signs are quoted per build: size, outline complexity, whether you want single colour or full RGB, and the crating needed for mirror panels all change the price. Send your artwork and the finished size and we return a line-item DDP price within 24 hours.
How deep does the tunnel effect look?
It depends on the distance between the two mirrors and how reflective the front surface is. Most logo builds sit between 60mm and 120mm deep and give 15 to 30 visible reflections; deeper boxes are available for larger wall features.
Can the sign be made in our own logo shape?
Yes. We cut the housing and mirrors to your outline — letters, symbols, crests or custom profiles. Send vector artwork and we will redraw the cut path and show it on the mockup.
Can the colour change or animate?
Yes. RGB builds ship with an app and WiFi controller, so the tunnel can hold one brand colour, cycle slowly or run a chasing effect. Single-colour builds use a fixed driver and cost less.
How is a mirror sign packed and shipped safely?
Mirror and glass panels need reinforced packing: foam-lined, timber-framed crates sized to the build, with corner protection. Crating is included in our DDP price, and every unit is tested and filmed before it is packed.
What do I need before I request a quote?
Vector artwork (AI, EPS, SVG or PDF), the finished size you have space for, whether you want single colour or RGB, and your full delivery address — street, city, state and ZIP. We need the complete address to calculate the exact DDP freight.
Get your free 3D mockup and factory price
Send your logo, size and full delivery address. Our engineer replies with a 1:1 CAD drawing and an exact DDP door-to-door price — usually within 24 hours, before you pay anything.
