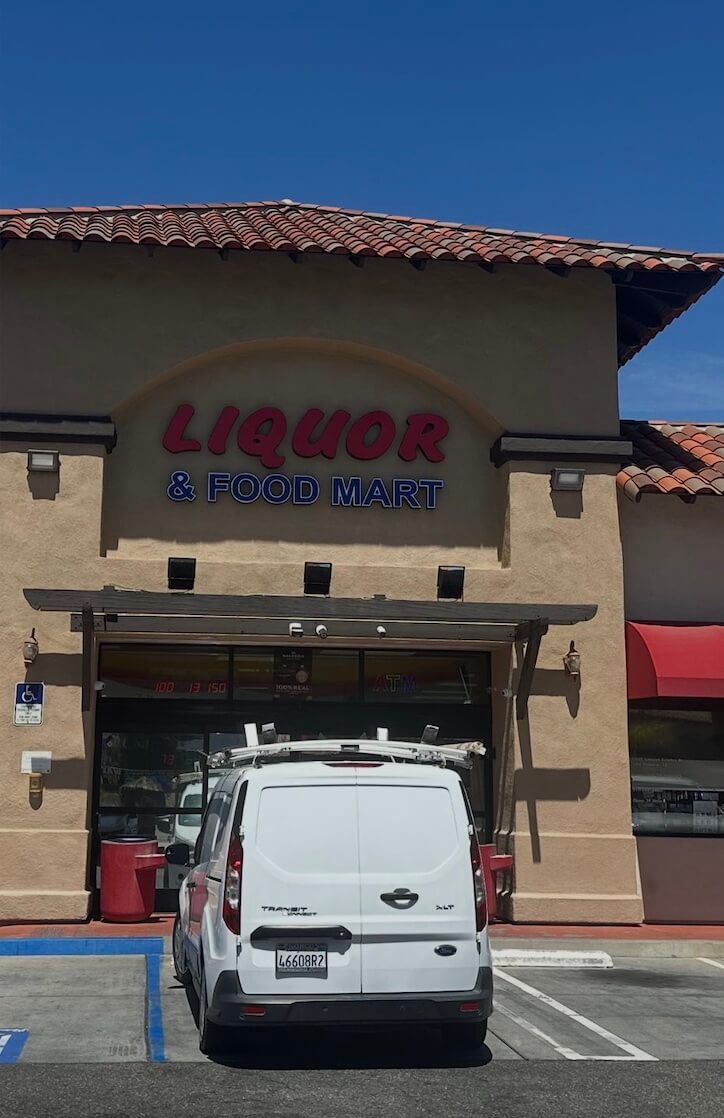

On a Saturday evening in May, Elias—the owner of a high-volume Shell gas station and convenience center in Lake Elsinore, California (Lake Elsinore, California)—reached out to our engineering team on WhatsApp. He wanted a high-visibility commercial signage upgrade to drive traffic into his on-site liquor department: "I want moving RGB lights that stop traffic on Canyon Estates Drive. But I need an integrated, double-sided sign box mounted on top of my existing price monument that won't block my maintenance doors."
To deliver maximum street impact, our team engineered a custom dynamic rgb sign box featuring double-sided addressable pixel LEDs and 3D dimensional lettering. Unlike generic mass-produced light boxes, this structure combines seamless liquid acrylic resin faces, internal steel reinforcement, and pre-programmed multi-mode controllers into a complete plug-and-play unit. Explore more verified commercial builds in our commercial signage portfolio.
1. The 7.5-Inch Problem: Why 1 Millimeter Could Ruin the Maintenance Door

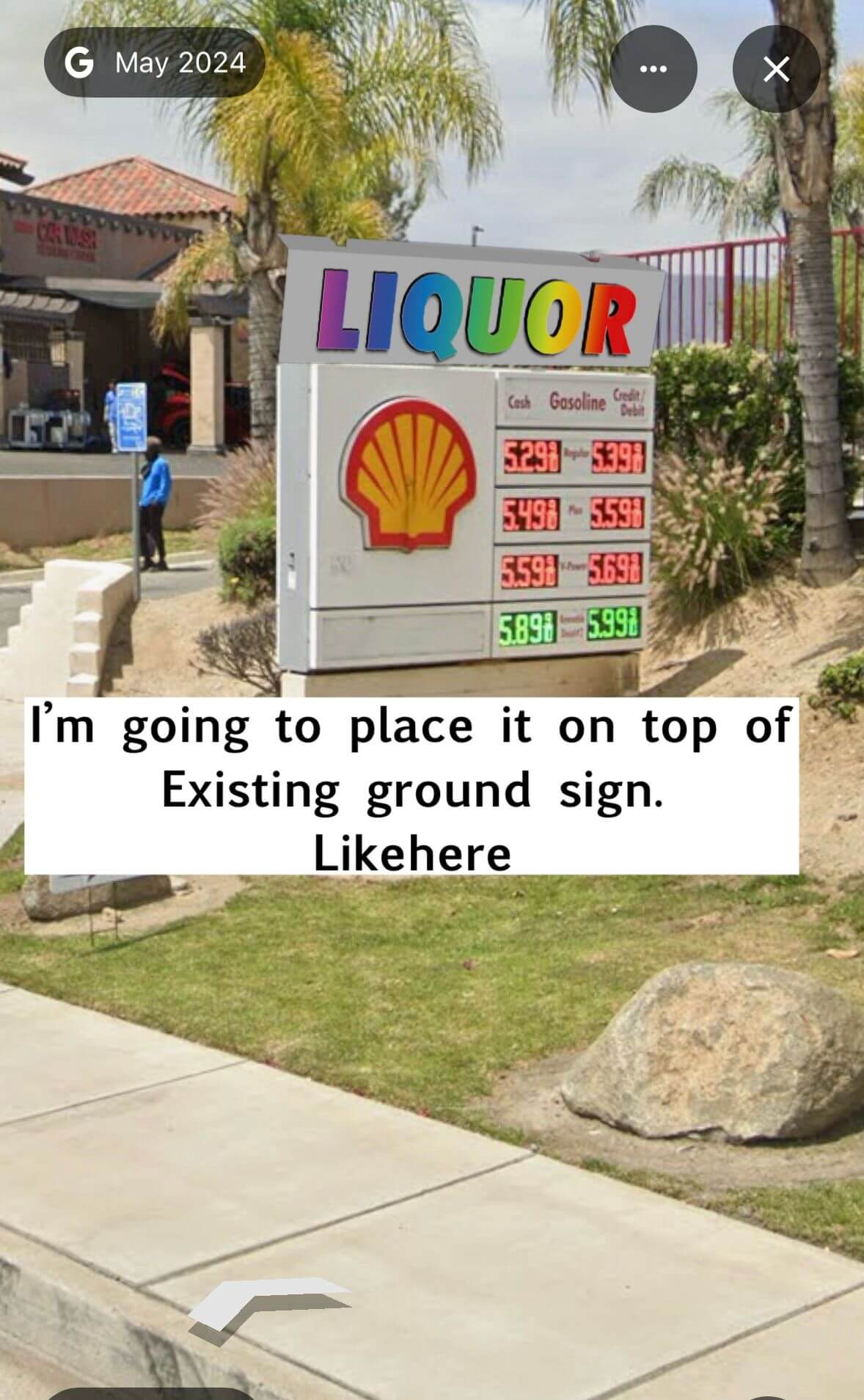

Mounting a new commercial sign box onto an existing roadside structure requires extreme precision. When Elias walked out to his monument with a flashlight that night to take site photos, we spotted an immediate structural hurdle:

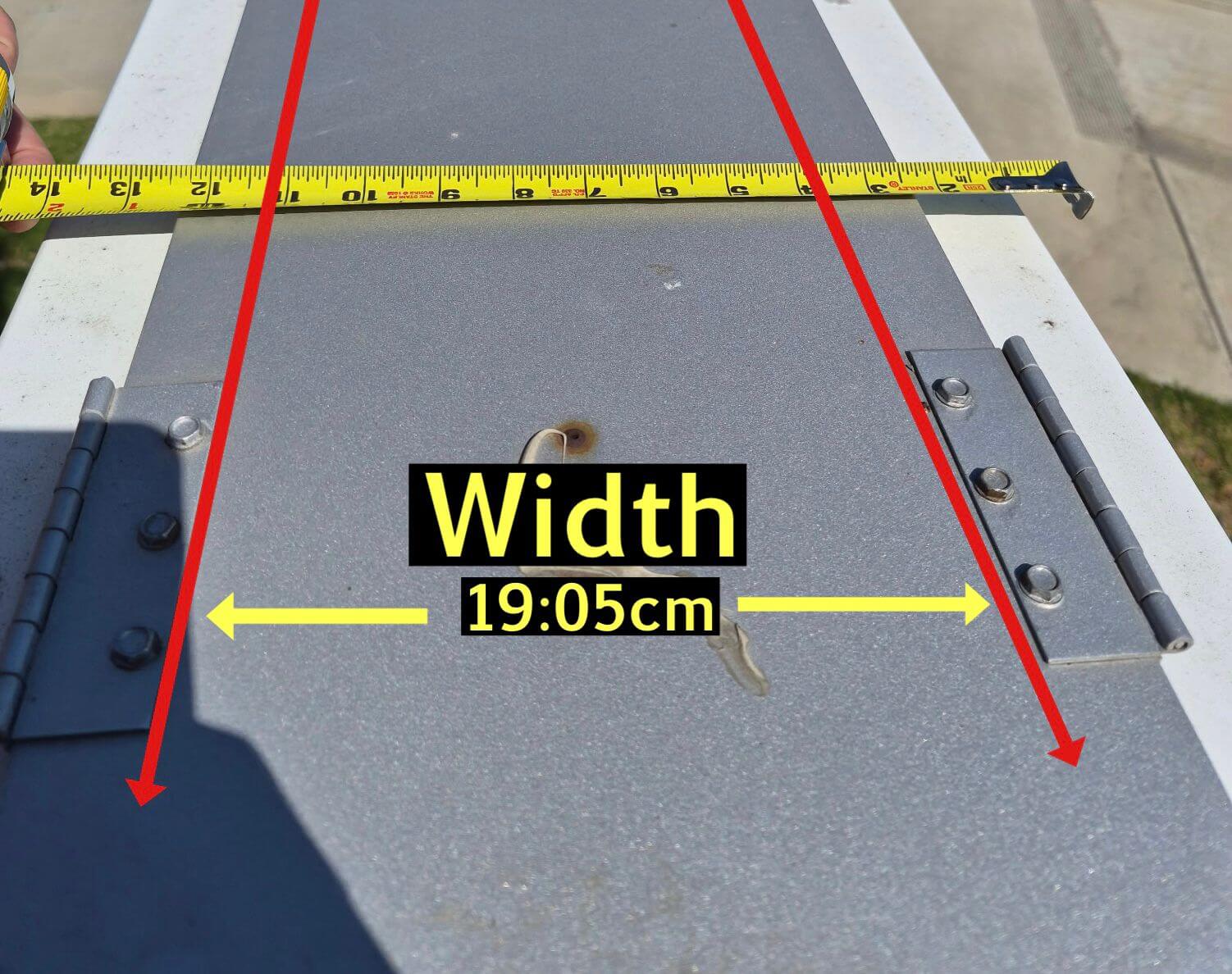

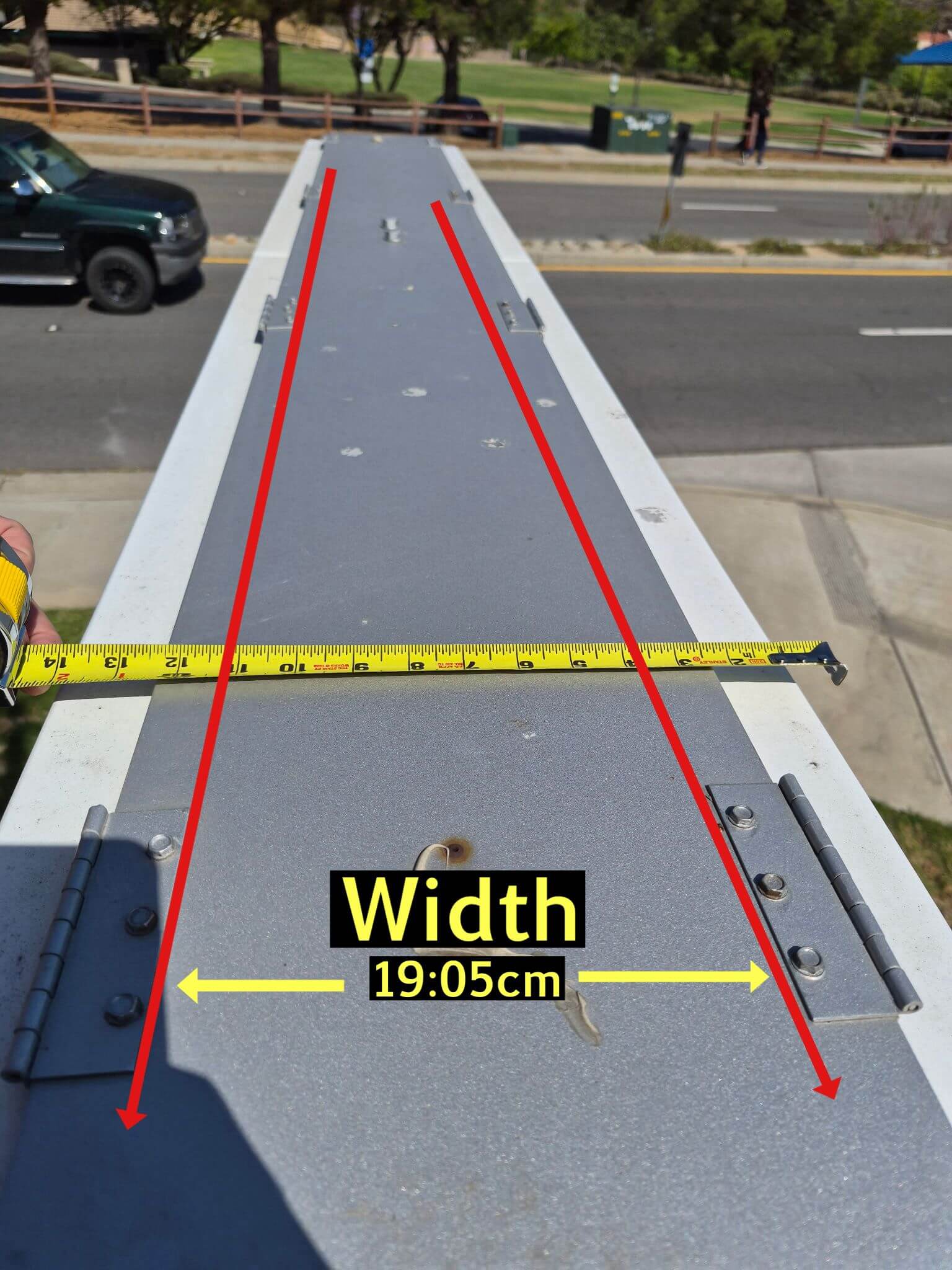

The ground monument featured top-hinged access doors that flip upward for price-panel servicing. The clear span between the two heavy-duty hinges measured exactly 19.05 cm (7.5 inches). If our new sign box base exceeded this width by even 2 millimeters, the maintenance doors would jam against our frame, creating a massive operational headache for his staff.
Instead of taking shortcuts, our engineering team designed an internal galvanized steel tube skeleton measuring 14.0 cm wide. The outer 18.0 cm aluminum sign cabinet was engineered as a precision "sleeve" that slides directly over the internal steel base and secures with recessed side screws. This locked the sign box down against strong desert wind gusts while keeping the service doors 100% functional.
2. "Red Letters Will Kill the Magic": The Color Decision That Saved the Night Glow

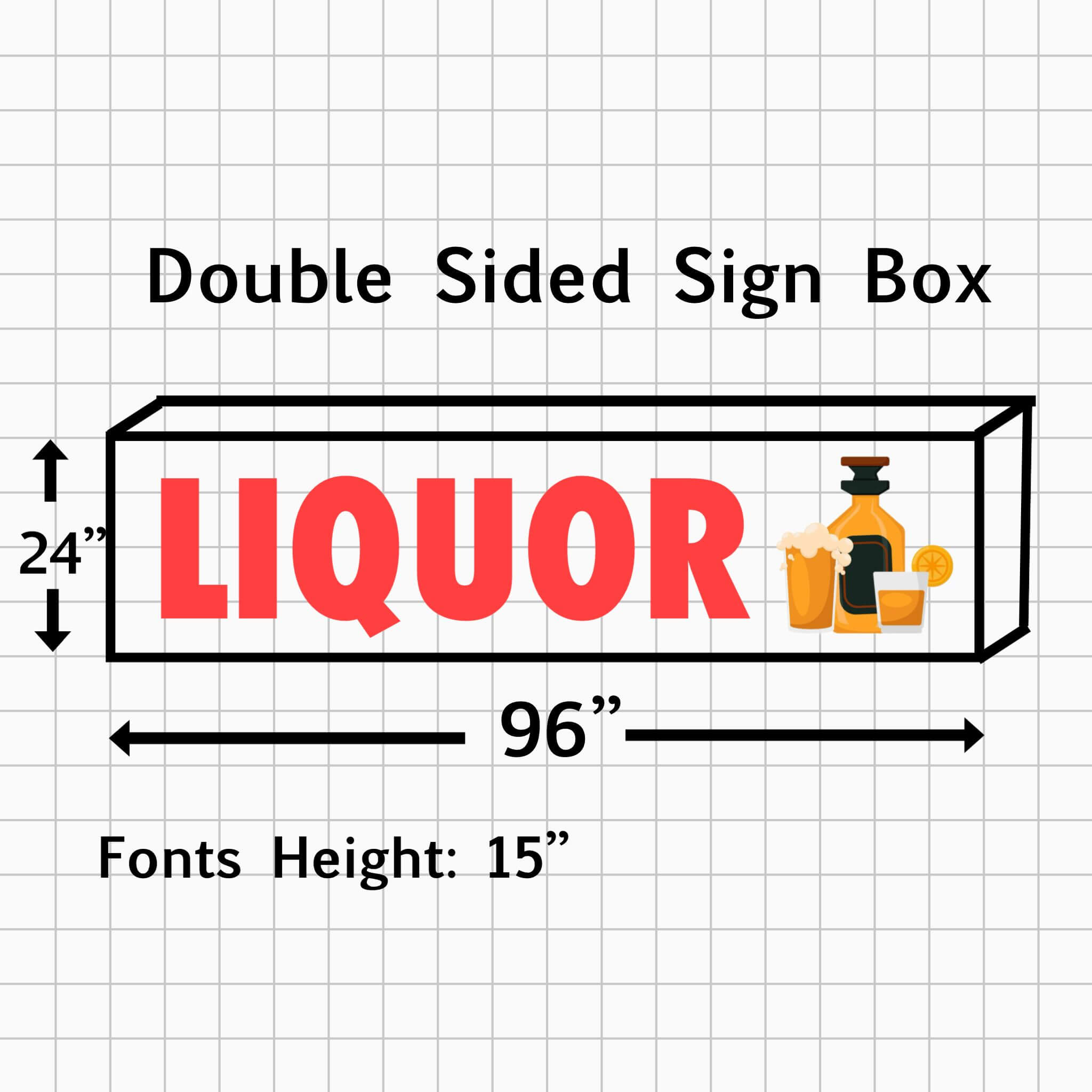

Elias originally wanted red letter faces to match his Shell station canopy stripes. But our team advised him against it in plain terms:
"Red acrylic will literally eat your blue and green light wavelengths. If your letter face is solid red, the dynamic multi-color flows will look like a muddy red blob at night. By switching to a pure white box with black-faced 3D channel letters, you get bold black-and-white contrast during the day, and pure, crystal-clear rainbow animations at night."

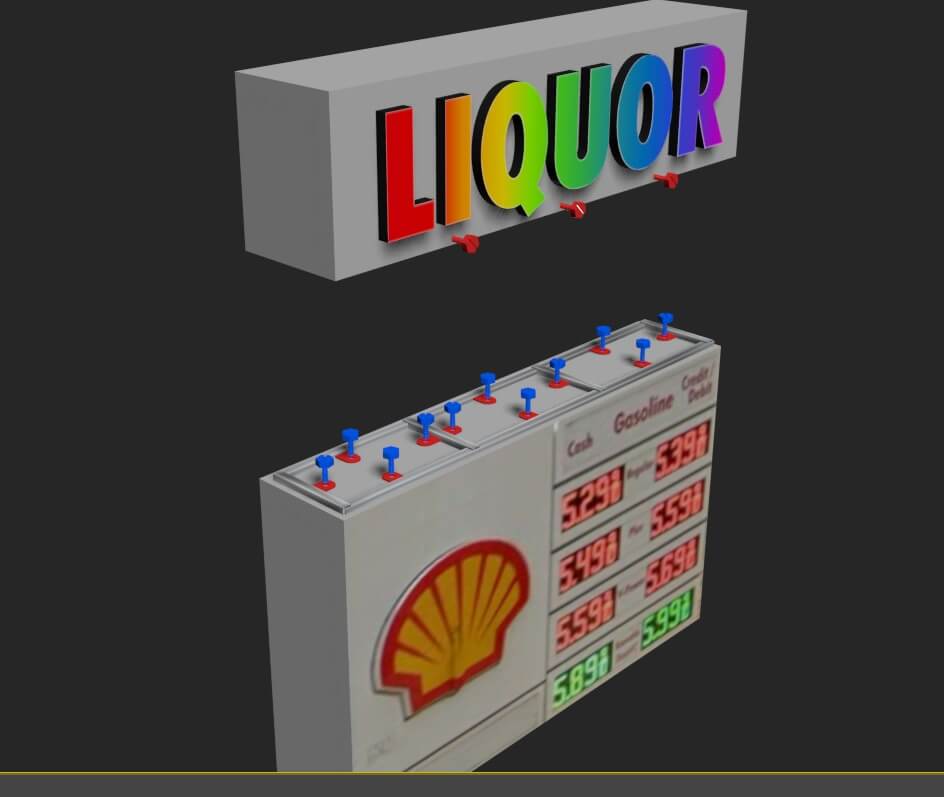

When we sent the updated 3D rendering video to Elias that evening, his reaction was immediate: "Your sign looks very good! Let's do it your way according to your recommendation."
3. Inside the Workshop: Hand-Pouring Liquid Acrylic & 500+ Diodes
Rather than using cheap 3D-printed plastic shells that trap heat and burn out diodes, our workshop fabricated this custom dynamic rgb sign box with premium commercial craftsmanship:
- Liquid Acrylic Casting: We cast solid 4-5mm liquid resin faces mixed with specialized optical diffusing agents. This eliminates visible LED hotspots and creates smooth, neon-like light dispersion, similar to the precision engineering on our FASTSIGNS 19.5ft dynamic storefront project.

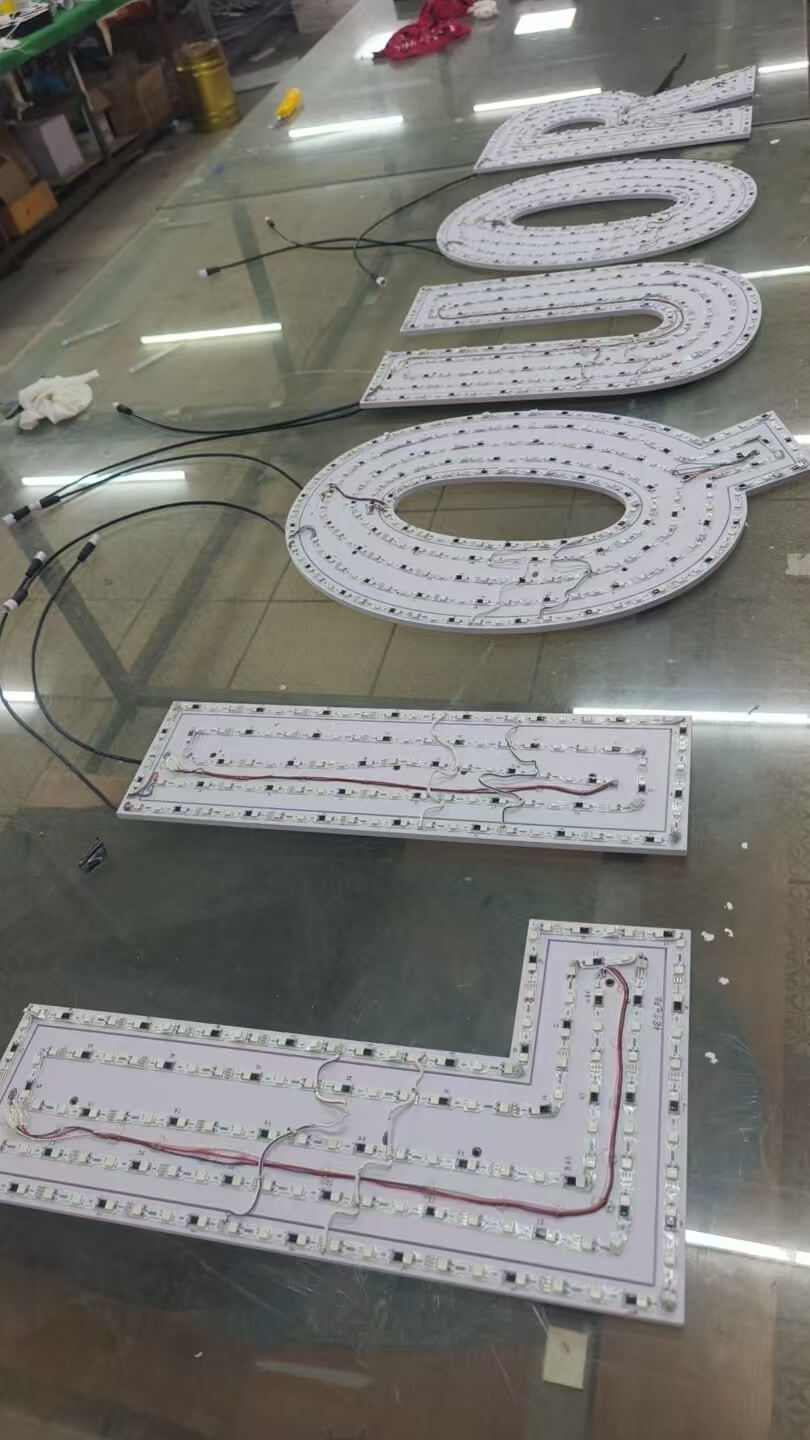

- Heavy Aluminum Heat Sinks: Heavy-gauge fabricated aluminum side returns channel heat away from over 500 high-density pixel LEDs, protecting the electronics from Southern California heat waves.
- Double-Sided Modular Assembly: Both sides of the sign box feature independently addressable LED baseplates, sealed against moisture, dust, and weather.
4. Two Days in the Darkroom: Testing Flowing Rainbows Before Packing
Before crating, every commercial sign box undergoes 48 hours of continuous darkroom testing. We cycled through dynamic rainbow flows, border chasing, and pure white flood modes while monitoring electrical current from the Mean Well commercial transformer:
5. From Guangzhou to Lake Elsinore: Safe Arrival and an Instant Second Order

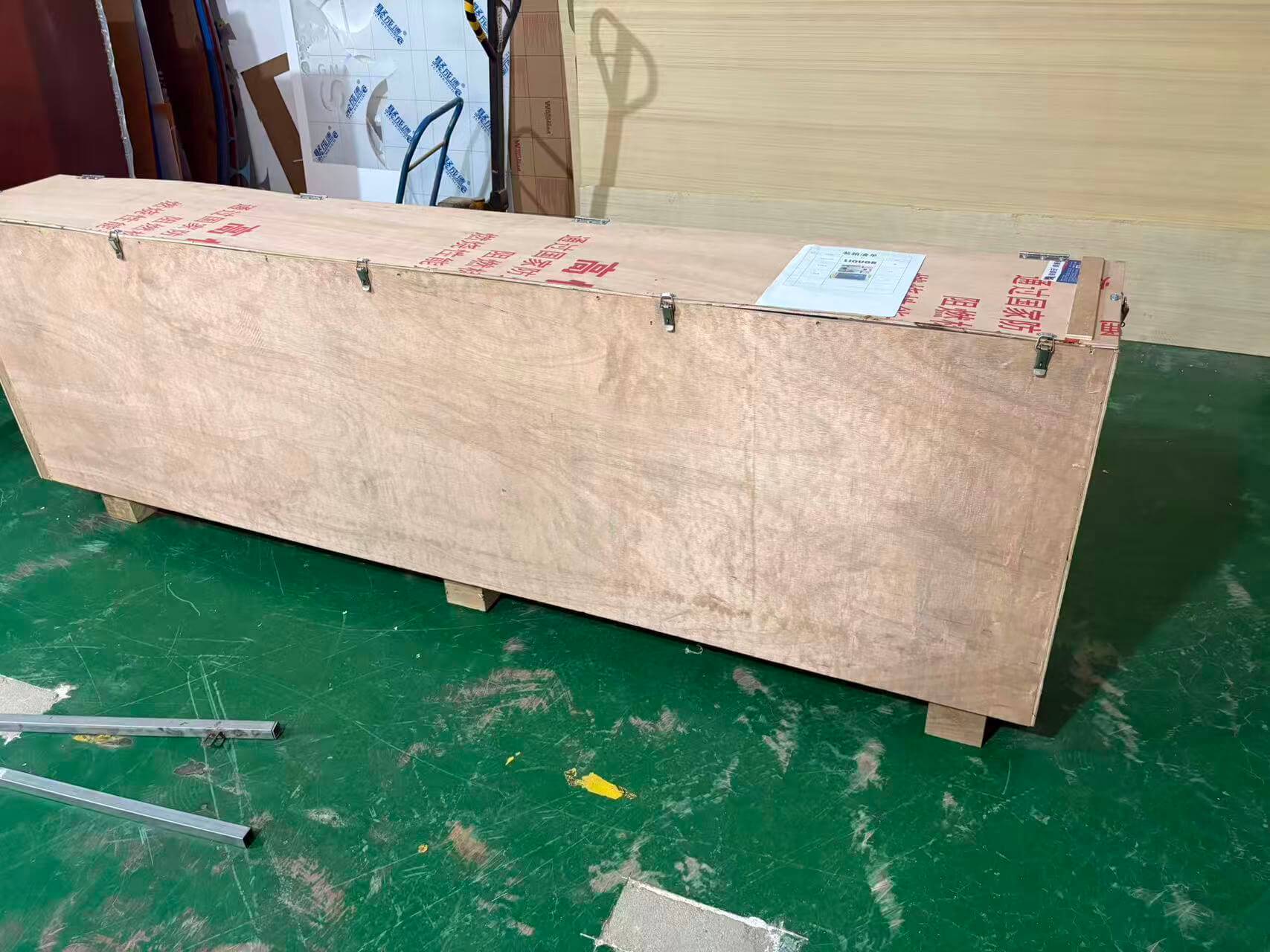

To ensure the heavy double-sided unit survived transpacific shipping, we packed it in multi-layered pearl foam, heavy corner buffers, and a military-grade plywood crate.
Under our Ocean DDP (Delivered Duty Paid) terms, EndPoint Sign handled all export filing, U.S. customs entry, harbor tariffs, transit insurance, and liftgate delivery directly to Elias's station. Just 6 hours after the crate was unloaded in California, Elias messaged us with photos of the unboxed sign:
That initial success immediately led to our next collaboration: building two outdoor Shell building signs for his colleague and an extensive 6-piece interior signage package for his walk-in cooler renovation, including our California Golfing y Mas channel letter build and New York restaurant custom backlit sign project.
6. Complete Engineering Specifications Summary
| Engineering Parameter | Technical Specification |
|---|---|
| Client & Facility | Elias Khawam / Summerhill Oil, Inc. (Shell Commercial Station) |
| Installation Site | Lake Elsinore, California, USA |
| Sign Category | Custom Dynamic RGB Sign Box (Double-Sided Monument Unit) |
| Cabinet Dimensions | 96.00" Width × 28.00" Height × 7.08" Depth (243.8 cm × 71.1 cm × 18.0 cm) |
| Internal Base Clearance | 14.0 cm Width Internal Steel Skeleton (Fits 19.05 cm Hinge Clear Span) |
| Letter Craftsmanship | High-Contrast Black Acrylic Faces with Cast Liquid Resin Diffusion & Black Aluminum Returns |
| Lighting System | High-Density Addressable IP67 Waterproof Pixel RGB LED Arrays |
| Control Electronics | Pre-Programmed Multi-Mode Offline Controller, Wireless Remote & Bluetooth Mini-App |
| Power Equipment | Commercial UL-Compliant Mean Well 12V DC Rainproof Power Supply |
| Logistics Terms | Turnkey Ocean DDP Door-to-Door Delivery with Liftgate Truck Service |
| Warranty Guarantee | 3-Year Comprehensive Factory Warranty & Lifetime Technical Support |
7. Why Commercial Property Owners Partner with EndPoint Sign
- Direct Factory Margins: Cut out 40% to 60% of middleman broker markups on an engineered custom dynamic rgb sign box.
- Custom Architectural Fit: We design custom internal skeletons to match existing mounting hinges, raceways, and wall studs.
- Turnkey DDP Freight: Fully insured ocean and air logistics direct to your storefront with customs duties pre-paid.
8. Frequently Asked Questions (Custom Dynamic RGB Sign Box)
What is a custom dynamic RGB sign box?
+A custom dynamic RGB sign box is an integrated commercial light box featuring double-sided addressable pixel LEDs and 3D dimensional lettering. Unlike static light boxes, it produces programmable animated color transitions, chasing flows, and neon-style border effects.
Why are black acrylic faces recommended for dynamic RGB sign boxes during daylight?
+Black acrylic faces on a pure white cabinet provide high contrast and bold daytime visibility when unlit. At night, internal addressable RGB LEDs shine unobstructed through the perimeter and face, creating vivid rainbow flows without color distortion.
How does liquid acrylic resin casting compare to standard routed plastic faces?
+Liquid acrylic resin mixed with light diffusion agents cures directly inside the aluminum return channel. This creates a solid 4-5mm seamless face with zero visible plastic trim caps, delivering over 94% optical transmittance, crystal-clear color transitions, and watertight IP68 protection.
How did you engineer the sign box to fit an existing 19.05cm hinge footprint?
+We engineered an internal heavy-duty steel tube skeleton measuring exactly 14cm in width. This allowed the outer 18cm sign box to slide down like a sleeve, anchoring securely while leaving a clean buffer between the existing 19.05cm price cabinet service door hinges.
What does Ocean DDP door-to-door freight include for commercial signage?
+Delivered Duty Paid (DDP) covers transpacific sea freight, U.S. customs entry bond, harbor tariffs, marine cargo insurance, and liftgate delivery directly to your store address in North America with zero hidden fees.
How much does a custom dynamic RGB sign box cost?
+Pricing depends on size, letter count, and the complexity of the lighting program, so each project is quoted individually. As a reference, dynamic RGB / pixel sign boxes are roughly $950–$2,400; the larger the sign and the more complex the animation, the higher the price. Every quote includes production, design fee, shipping insurance, and customs clearance (DDP door-to-door).
Do you offer a warranty on your signs?
+Yes. We provide a 3-year factory warranty on the internal LED light components, with free replacements. Damage caused by human actions (such as unauthorized modification or impact) is not covered.
