Petroleum & Retail Case Study

Channel Letters Signage: Precision Acrylic vs. Faded Used Signs for a California Shell Gas Station

A California station owner almost bought $1,000 used signs. We proved why custom-engineered channel letters signage is the smarter investment for lasting brand value.

The Dilemma: Refurbished Junkyard Bargains vs. Modern Channel Letters Signage

In mid-May, our client Elias contacted us on WhatsApp. We had already built a double-sided dynamic RGB sign box for his Shell station in Lake Elsinore. This time, his business partner needed two 36" × 36" Shell sign boxes.

During the review, Elias shared a real budget concern:

Elias: "My partner thinks new signs cost too much. A local refurbisher offered two used Shell signs for $1,000 total. Why should we spend more on new custom builds?"

Many station operators face this exact choice:

Buy used signs that spent seven years baking under desert sun.
Invest in modern channel letters signage built with premium LEDs and heavy acrylic.

As seen in our commercial signage portfolio, cheap storefront signs always cost more over time.

We explained the risks of used signs. Old acrylic gets brittle and cracks. Aged wiring often causes electrical shorts within a year. Older molds also look flat and outdated.

Elias and his partner saw the difference immediately. They approved two brand-new 36" × 36" sign boxes with a 2-inch raised Shell scallop emblem.

Custom channel letters signage layout prepared at EndPoint Sign's Guangzhou plant — Figure 1: CAD layout showing the 36" × 36" size, 5" box depth, and 2" raised Shell logo.

Engineering 3D Relief: Upgrading Channel Letters Signage Beyond 2010 Vacuum Forming

Older sign designs relied heavily on vacuum forming. While popular 15 years ago, thermoformed plastic has clear flaws:

Soft Edges: Mold angles limit relief to only 1 inch. Corners look rounded rather than sharp.
No Side Glow: Vacuum bubbles form from a single sheet. You cannot create separate glowing side edges.
Heat Cracking: The stretching process makes acrylic thin at the edges. Hot California summers easily crack these weak points.

We used modern Precision Acrylic Fabrication instead. Our shop CNC-routed the Shell emblem from thick acrylic and hand-crafted 2-inch returns. This approach matches the build method from our Golfing y Mas precision channel letters project.

Figure 2: Shop drawing detailing the 13.72cm total depth and 2-inch raised Shell emblem.

Now, both the front face and returns light up evenly. The Shell logo projects a crisp, 360-degree glow against the matte white box, creating a bold channel lettering sign profile.

Industrial Multi-Pass UV Printing: Locking in Corporate Standards

Corporate brand colors must match official standards. The client specified exact corporate codes: Shell Red (Pantone 485 C) and Shell Yellow (Pantone 109 C).

Figure 3: Corporate color guide for exact ink calibration on our UV flatbed printer.

Basic print shops often struggle with illuminated colors. Bright led channel letters wash out single ink layers. Reds turn into weak pinks, and yellows look pale.

We solve this with industrial UV flatbed printers:

We print double-pass color layers for dense coverage.
We add an opaque white barrier layer between strikes.
Instant UV LED lamps cure the ink immediately.

This keeps colors solid and glossy in daytime sun, while preserving true brand colors under 6500K LEDs at night.

Illuminated channel letters during factory testing at the EndPoint Sign Guangzhou plant — Figure 4: Completed sign undergoing bench testing with crisp white edges and rich brand colors.

Factory Production Footage: From Ink Bed to Export Crate

We share workshop videos so clients can inspect quality before shipping. Tap any card below to watch the quick shorts clips:

Factory View: Precision UV Printing

Watch our flatbed printer lay down rich inks to stop light washout.

Darkroom Quality Verification

Review the 2-inch acrylic relief during our 30-hour electrical test.

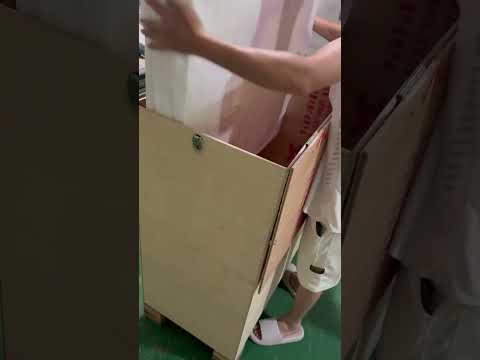

Heavy-Duty Export Packaging

See how we pack signs in foam-lined plywood crates for safe transit.

Technical Specifications Summary

Engineering Parameter	Fabrication Specification
Product Category	Commercial Channel Letters Signage / 3D Raised Acrylic Light Box
Exterior Dimensions	36.00" H × 36.00" W × 5.40" D (91.44 cm × 91.44 cm × 13.72 cm)
Raised Relief	2.00" (5.08 cm) 3D projection with acrylic edge returns
Base Construction	Contoured white cabinet with lower curve profile
Illumination System	IP67 Waterproof Blueview LED modules (Static 6500K White)
Power Supply	UL-Listed Mean Well 110V/120V AC input to 12V DC output
Testing Standard	30-hour darkroom burn-in test and waterproof seal check
Logistics Method	Ocean DDP (Duty Paid) direct to Lake Elsinore, California

Ocean Freight Engineering: Preventing Crushed Acrylic

A broken sign helps no one. Ocean shipping involves heavy vibration, damp air, and rough handling.

We never use simple cardboard boxes. Instead, we build custom plywood crates with solid wood frames. We wrap every sign in 30mm thick pearl foam and shock-absorbing blocks. This prevents direct pressure on the 2-inch acrylic relief.

Under turnkey DDP terms, EndPoint Sign managed all customs clearance, harbor duties, and trucking directly to the California store.

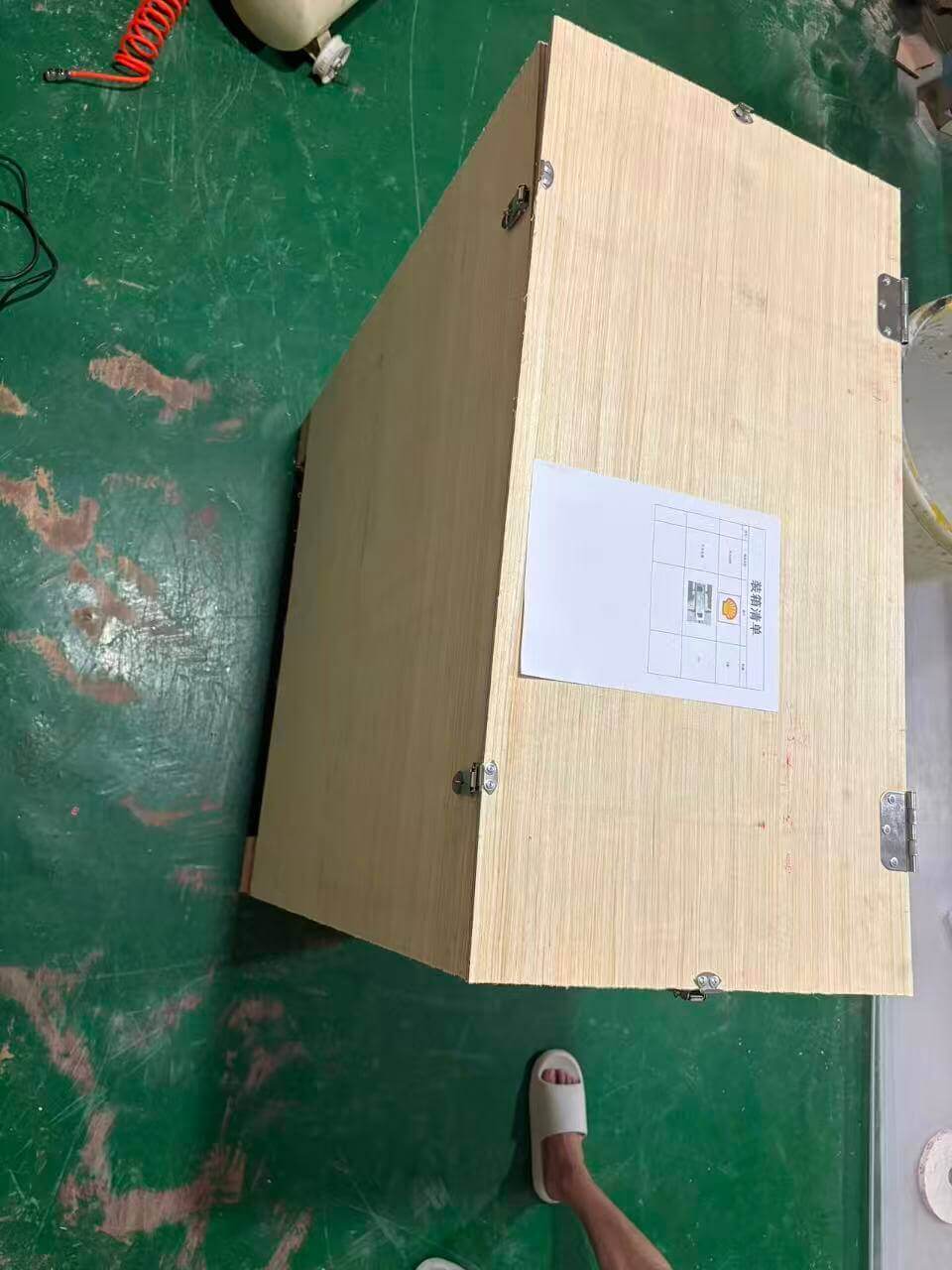

Reinforced export crate lined with dense foam at EndPoint Sign's Guangzhou packing bay — Figure 5: Reinforced export crate lined with dense foam for ocean transit.

Related project: see how we engineered a 92-inch corporate channel letter sign for Avid Controls in Texas.

Frequently Asked Questions (FAQ)

Why choose precision acrylic fabrication over traditional vacuum-formed channel letters signage?

Vacuum forming stretches plastic over a mold. This creates thin corners and soft edges with only 1 inch of depth. Our precision acrylic method uses CNC routers and hand-built returns. This gives you a sharp 2-inch relief, brighter edges, and much better resistance to sun damage.

How does multi-pass industrial UV printing prevent color fading on outdoor commercial signs?

Single ink layers look washed out under bright LEDs. We use flatbed UV printers with double-pass color and an opaque white barrier layer. This locks in the exact corporate Pantone reds and yellows so they stay vibrant day and night.

How are wall-mounted exterior commercial sign boxes safely secured?

We use a dual mounting method without ugly frame screws. Top brackets anchor the sign directly into the wall. Then, high-grade outdoor silicone seals the rear perimeter to hold against strong winds.

What electrical standards are provided for North American commercial storefront signage?

We use IP67 Blueview LED modules and UL-listed Mean Well power drivers. They run on standard 110V/120V US voltage. Every sign undergoes a 30-hour darkroom burn-in test before packing.

How much does a custom channel letter sign cost?

Pricing depends on letter count, size, and lighting spec, so each project is quoted individually. As a reference, a standard 3D channel letter / sign box is roughly $800–$2,200; the larger the size and the more complex the lighting, the higher the price. Every quote includes production, design fee, shipping insurance, and customs clearance (DDP door-to-door).

Do you ship to the USA, and how long does it take?

Yes. We ship nationwide under full DDP (Delivered Duty Paid) terms — we handle export, US customs, import duties, and delivery to your door. Express Air DDP takes about 10–14 days; Ocean DDP about 18–25 days, depending on destination and cargo.

Do you offer a warranty on your signs?

Yes. We provide a 3-year factory warranty on the internal LED light components, with free replacements. Damage caused by human actions (such as unauthorized modification or impact) is not covered.

Is it hard to install the sign myself?

No. Every sign ships with a 1:1 scale paper mounting stencil, pre-spaced studs, a UL-compliant plug-and-play 12V power adapter (standard US 110V plug), and step-by-step video instructions.
