How We Built Backlit Channel Letters for Avid Controls in Waller, Texas

Sourcing custom channel letters and a backlit sign for a commercial storefront or window shielding display requires precise structural engineering, rigorous pre-shipment quality control, and absolute supply chain accountability. This case study covers how EndPoint Sign engineered, tested, and shipped a 92-inch custom backlit channel letter sign for Avid Controls in Waller, Texas, and how a transit damage claim was resolved with a $2,200 refund.

Following a previous successful order (the Betta USA Aquatic custom halo lit indoor display, where Tai worked directly with us and earned his boss's complete confidence), Tai entrusted us with this 92-inch oversized window shielding display for his boss's company. This comprehensive case study details how our factory engineered an ultra-slim 8-point mounting halo lit sign, tackled oversized air freight regulatory hurdles, navigated international transit damage with 100% transparency, and ultimately processed a prompt refund settlement ($2,200 total) through active international claim management. Explore more completed commercial installations in our commercial signage case study portfolio.

1. The Engineering Challenge: 92-Inch Span & 8-Point Structural Mounting

Commercial storefront glass backdrops and window shielding displays demand clean, modern architectural lines without bulky external frames. When configuring these custom channel letters and backlit channel letters for Avid Controls, the physical dimensions were substantial: 53 inches High × 92 inches Wide (approx. 135 cm × 234 cm).

Spanning over 7.5 feet across a window glass area introduces significant structural risks. Without proper internal reinforcement, oversized acrylic and metal composite panels can bow or warp over time. Our lead engineers designed a robust 8-point mounting architecture (distributing anchor points evenly across top, bottom, and side frame returns) paired with internal aluminum backer bars. This ensured the sign remained perfectly flat against the window frame while maintaining an ultra-slim profile—mirroring the meticulous structural planning seen in our Apex Customs dual-emission shield sign project.

Figure 2A: CAD engineering blueprint detailing the 92-inch span and 8-point mounting layout.

Figure 2B: Pre-press vector layout optimization for typography and logo scaling.

2. Precision Factory Fabrication & 30-Hour Durability Testing

Following formal design confirmation from Tai and Avid Controls' management team, production commenced immediately at our primary Guangzhou manufacturing facility. Every halo lit signage installation undergoes rigorous subtractive CNC routing, laser welding, and manual acrylic inlay:

• Subtractive CNC Milling: High-precision routers carved 5mm matte black acrylic base panels and raised 25mm (20+5mm) translucent white/red acrylic letter faces to create a sophisticated 3D dimensional profile using custom 3D channel letters.
• Integrated Halo Backlighting: High-density 5000K commercial LED modules were wired in parallel across internal aluminum channels, casting a soft, professional halo reflection against the backing surface.
• 30-Hour Burn-In Quality Control: Before packaging, the completed fixture underwent a continuous 30-hour darkroom electrical load test to verify thermal dissipation, transformer stability, and uniform light diffusion.

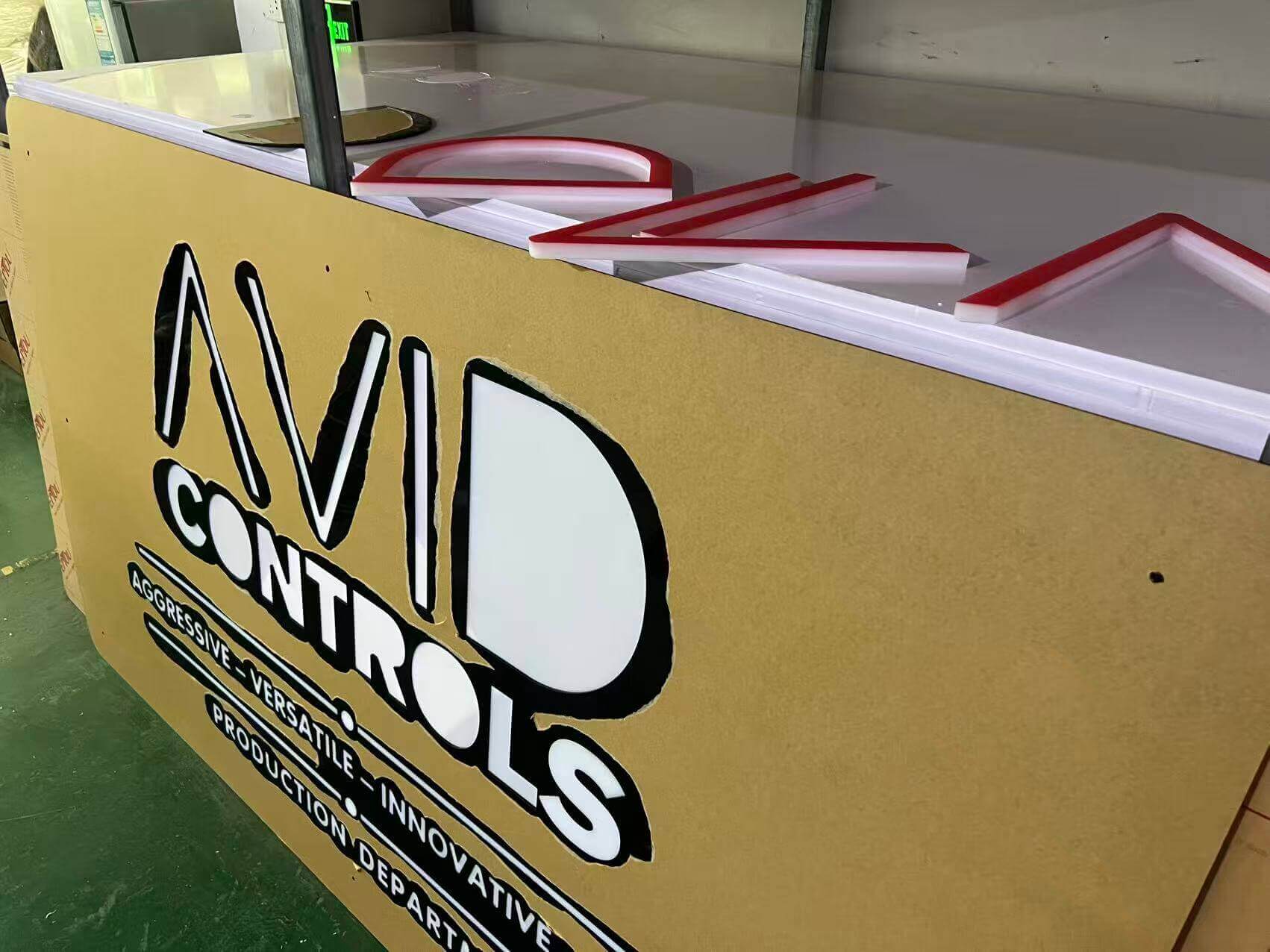

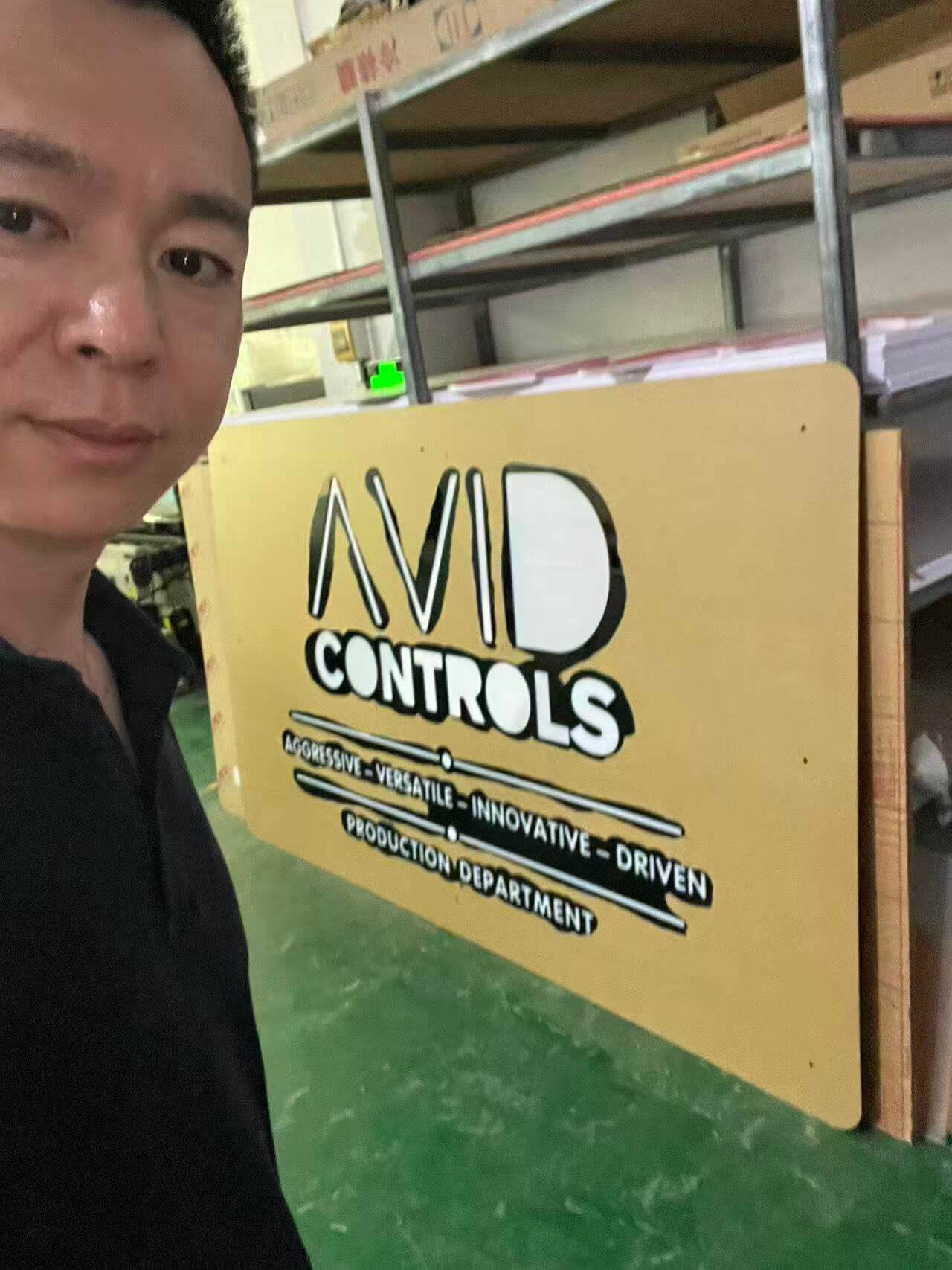

Figure 3A: Workshop assembly stage showing technicians aligning precision letter inlays.

Figure 3B: Pre-shipment inspection confirming surface smoothness and edge clarity.

Factory Video Inspection

92-Inch Corporate Halo Backlit Sign

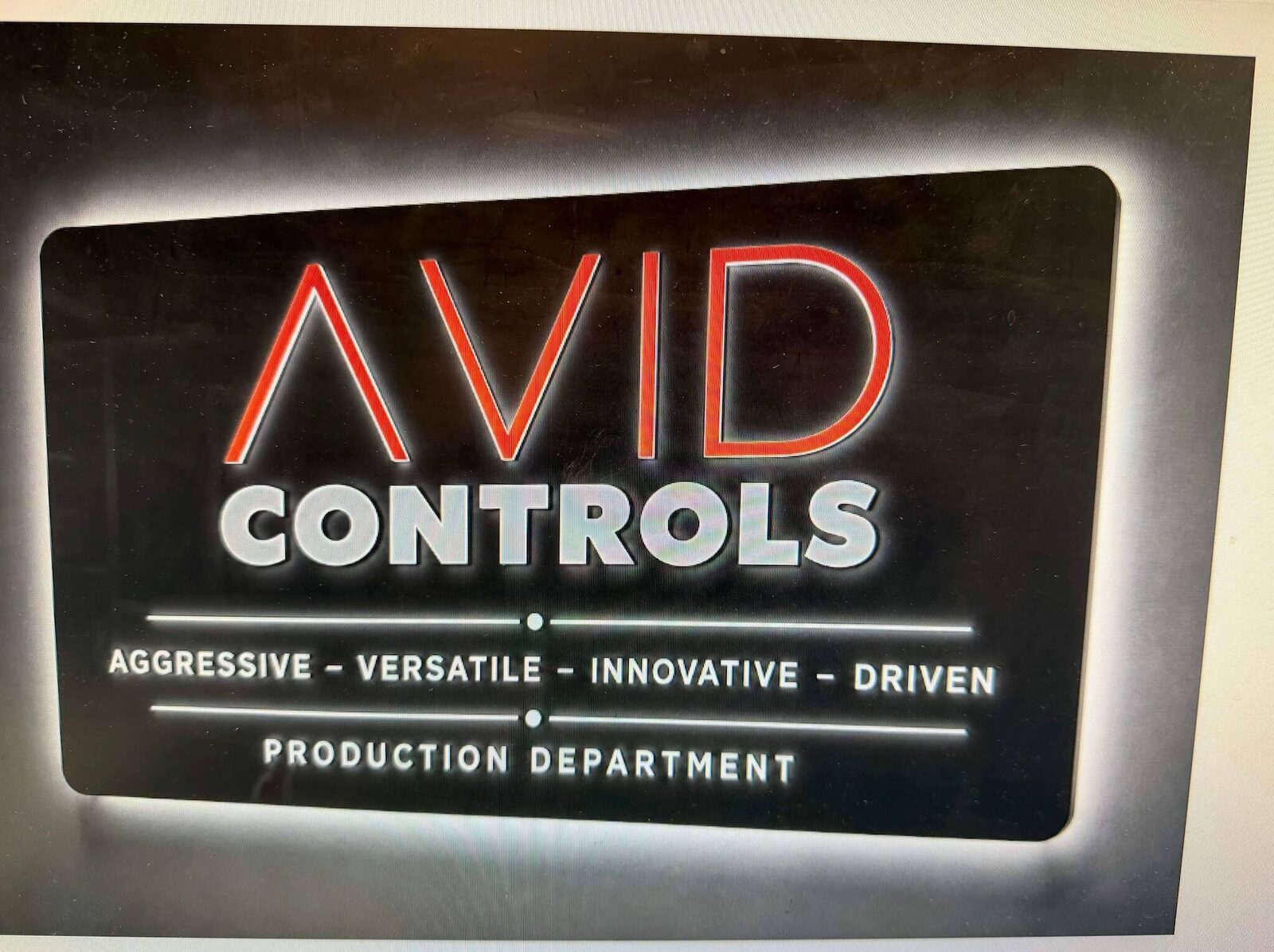

Live factory inspection of the backlit channel letters in our darkroom testing facility.

Component Assembly

Component Assembly & Wiring Check

Detailed footage showing component assembly and wiring preparation for the oversized backlit sign.

Structural Framing

Framework & Inlay Verification

Close-up inspection of the internal framing reinforcement and letter inlay precision.

Durability Test

30-Hour Durability Burn-In Testing

Continuous electrical and thermal testing to guarantee long-term operational stability.

3. Navigating International Freight Realities & The Air Cargo Size Limit

Logistics for oversized architectural fixtures require constant adaptation. Initially, Tai requested expedited air shipping to Waller, TX. However, when our logistics team delivered the crated sign to the international air freight terminal, airline cargo regulators rejected the shipment.

Commercial aviation safety rules strictly mandate that any package with a single side length exceeding 150 cm (59 inches) or a total weight over 68 kg cannot be accepted on standard passenger or freighter aircraft. Because this sign spanned 92 inches, air freight was physically impossible.

Demonstrating proactive customer care, we immediately pivoted the shipment to specialized container ocean freight scheduled for container loading on June 5th. To compensate for the transit mode adjustment, we fully refunded the $400 USD air freight price difference back to Tai's account (retained as a credit for future projects). This mirrors the transparent logistics support highlighted in our custom backlit sign manufacturing workflows.

Factory Overview & Dispatch

Manufacturing & Engineering Overview

Comprehensive walkthrough of our Guangzhou sign manufacturing facility, CNC routing, and packaging quality checks.

4. When Transit Damage Occurs: 100% Factory Accountability & Insurance Settlement

Following ocean transport and domestic US trucking, the shipment arrived at Avid Controls in Waller, Texas. On August 4th, Tai inspected the delivery and discovered that the sign had sustained severe middle cracking due to rough courier handling.

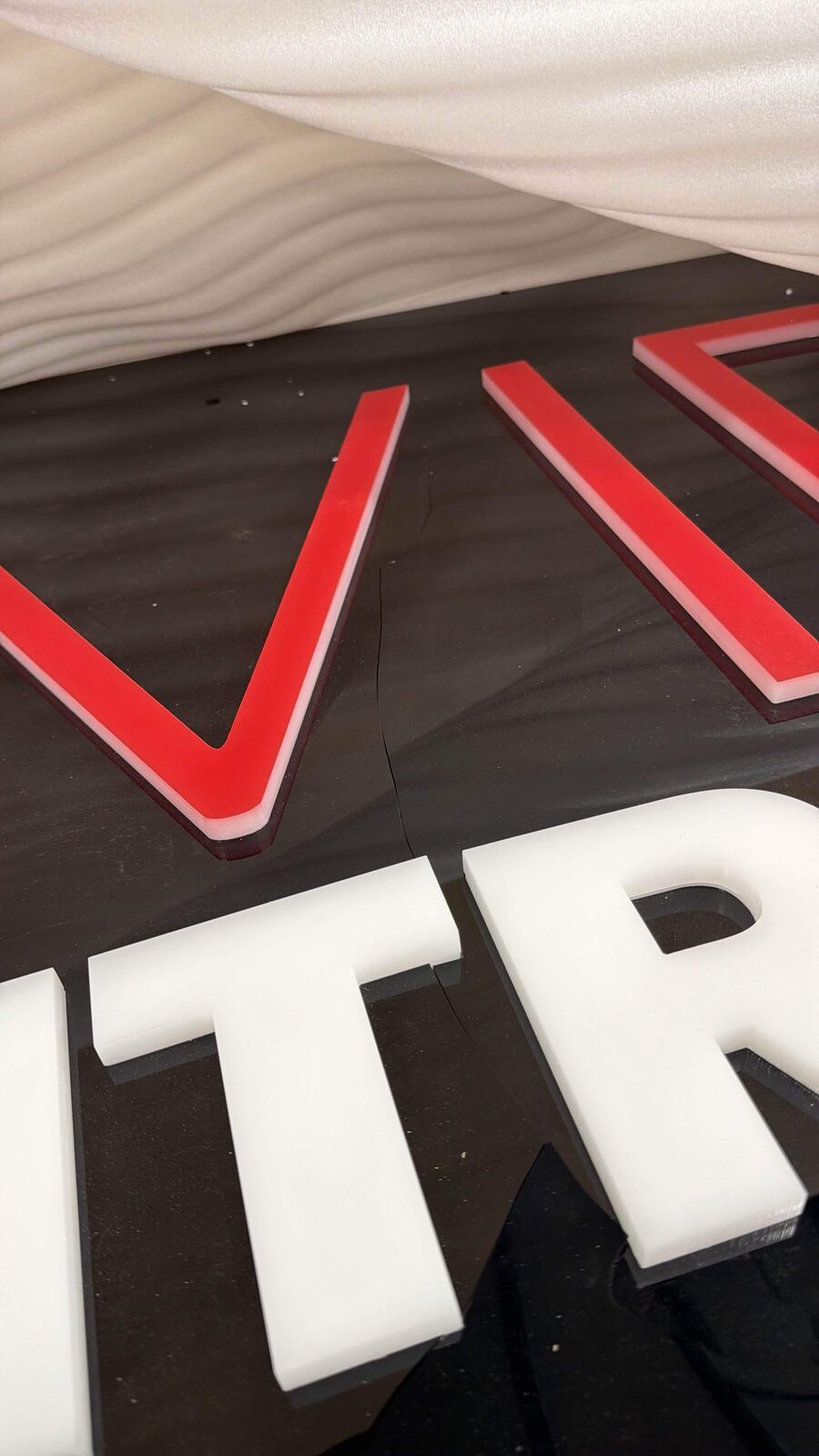

Figure 5A: Inspection photo showing the transit crack across the central acrylic face on August 4th.

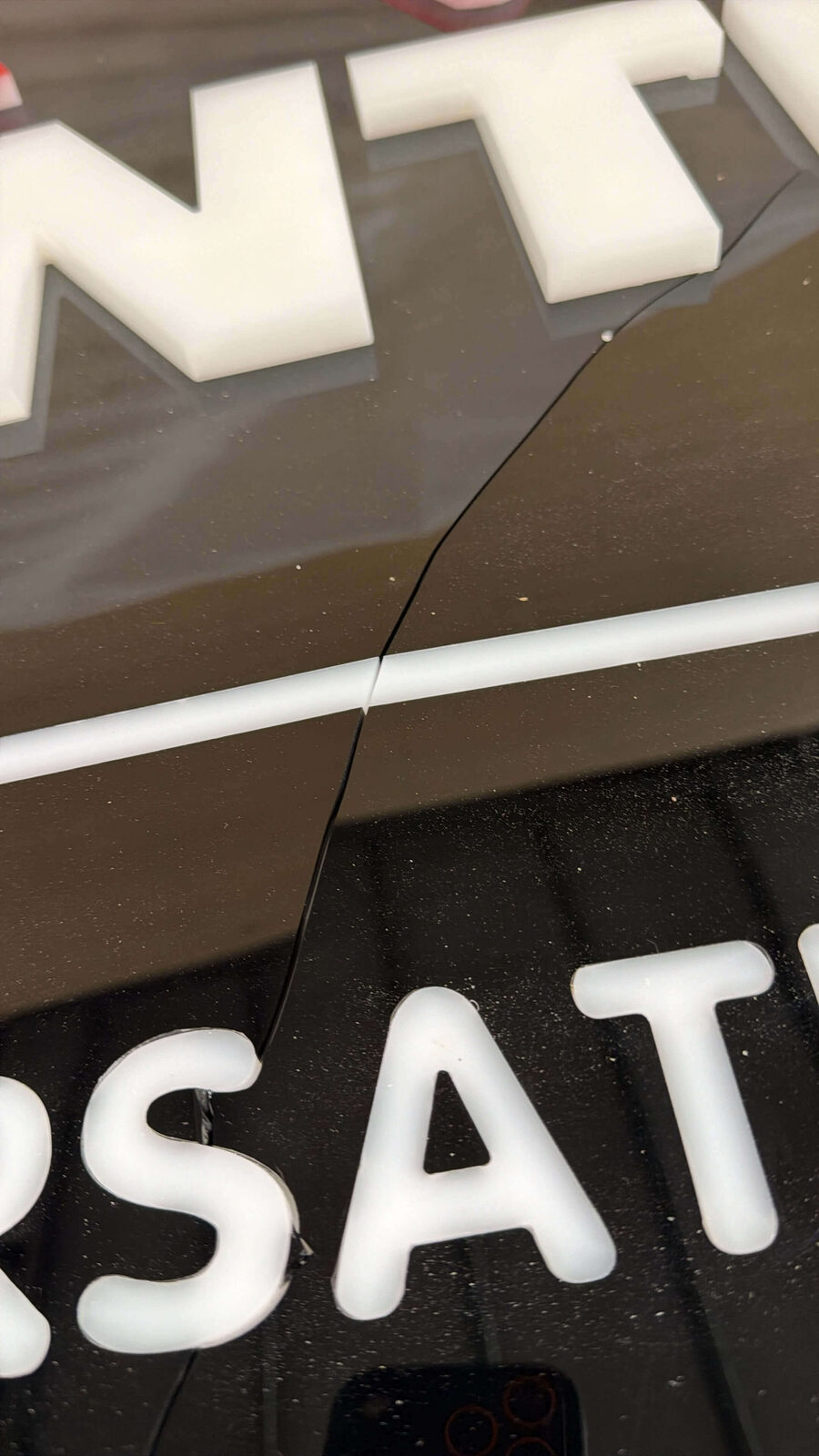

Figure 5B: Close-up documentation submitted for international cargo insurance claims.

Many overseas manufacturers disappear when shipping damage occurs, leaving clients to absorb financial losses. At EndPoint Sign, our core operating principle is absolute integrity—matching the rigorous warranty backing we provide on our Michigan luxury spa illuminated signs.

We immediately initiated a formal cargo insurance claim. Because international insurance providers often attempt to minimize payouts, our team engaged in multi-week negotiations. Initially, the insurer offered $1,500 USD, which we promptly rejected. Through persistent advocacy, we successfully forced the insurer to raise the payout to $1,800 USD.

Our team secured a $2,200 refund for Tai through the cargo insurance claim and account credits.

Figure 6A: Official cargo insurance claim settlement documentation.

Figure 6B: Bank wire transfer confirmation receipt initiated on September 8th. The $2,200 refund was transferred on September 8, 2026.

Upon receiving Tai's confirmation for a cash refund (providing bank account details for the refund), our finance department processed the transfer. On September 8th, the wire transfer was successfully initiated to Avid Controls' account (with cross-border crediting taking standard 10–15 business days). If you are still weighing which sign type suits your storefront, our guide on channel letters vs light box walks through how we decide.

5. Complete Project Specifications Summary

6. Why Corporate Clients Trust EndPoint Sign as Their Direct Manufacturer

• Uncompromising Accountability: If international freight mishaps occur, we actively manage insurance negotiations to secure maximum compensation for our clients.
• Oversized Engineering Expertise: Our structural framing guarantees that 90-inch+ wall displays remain permanently flat and warp-free.
• Factory-Direct Transparency: Experience full visibility from CAD blueprinting and 30-hour burn-in testing to safe global logistics.
