How We Built Four Round Halo-Lit Signs for a New York College
A comprehensive technical breakdown of manufacturing 4 custom round LED signs for an educational institution in New York, featuring production timelines, installation guides, air vs. sea freight data, and B2B sign contractor insights.
When looking for custom halo lit signs and round LED signs, professional sign contractors need reliable factory partners who can deliver exact structural integrity, strict color matching, and dependable delivery timelines. Recently, we manufactured 4 custom illuminated circular signs for an educational institution project in New York, including two 24-inch units and two 36-inch units, managed directly through a local sign contractor.
This case study details the entire manufacturing lifecycle, real production parameters, cost breakdowns between sea and air DDP shipping, detailed project timelines, on-site installation guides, and why B2B contractors partner with us for factory-direct OEM production. For more project examples, explore our full portfolio or read our guide on choosing channel letters, halo letters, or light boxes. Whether you need 24-inch or 36-inch round halo lit signs, our factory provides turnkey manufacturing solutions.
1. Project Overview & Scope of Work
A 24-inch round halo-lit sign typically takes 7 days to manufacture in our Guangzhou facility, combining precision metal fabrication with advanced lighting engineering. For this educational institution project in New York, the contractor required a complete batch consisting of 4 circular signs built to precise architectural specs.
- Product Scope: 4 custom round LED signs (2 units at 24 inches in diameter, and 2 units at 36 inches in diameter).
- Structural Design: 1mm galvanized steel sheet body with precision side-welded returns, achieving an overall thickness of 2 to 2.5 inches (5–6 cm).
- Illumination Setup: Dual-illumination configuration featuring a vibrant blue halo backlighting on the rear backplate, combined with 2 frameless blue acrylic letters featuring front-and-back dual illumination and clean white borders.
- Color Matching: Custom paint coating matched exactly to the client-provided Pantone blue color codes.
Figure 1: Approved engineering schematic outlining letter depths and wiring layouts.
Watch: Close-up look at our precision manufacturing process.
2. Technical Specifications
Commercial signage deployed in public educational facilities must withstand rigorous weather conditions while maintaining flawless illumination. Below are the precise technical specifications used for this production run of custom halo lit signs, including two 24-inch units and two 36-inch units.
| Component / Parameter | Specification Details |
|---|---|
| Diameters | 2 units at 24 inches; 2 units at 36 inches |
| Overall Thickness | 2 to 2.5 inches (5–6 cm) |
| Face & Body Material | 1mm painted galvanized steel sheet with welded side returns |
| Illumination Type | Rear blue halo backlighting + push-through dual-lit acrylic letters |
| LED Modules | IP67 waterproof modules, high lumen output |
| Power Supply | Built-in UL-listed Mean Well power supply (110V US standard) |
| Ingress Protection | IP67 sealed against outdoor rain, snow, and dust |
| Mounting Hardware | 1-inch insulated standoff mounting studs and 1:1 paper template |
| Packaging | Heavy-duty export plywood wooden crate with internal rigid framing |
3. Project Timeline & Production Schedule
A structured workflow ensures that high-volume orders like these round LED signs move seamlessly from design approval to international transit without administrative bottlenecks.
| Project Stage | Duration / Timeline | Operational Description |
|---|---|---|
| Design & Engineering Approval | 1–2 days | Initiated immediately upon vector file submission; enters production right after client provides written APPROVED confirmation. |
| Manufacturing & Aging Test | 7 days | All 4 sets manufactured simultaneously, undergoing laser cutting, welding, painting, and a mandatory 48-hour continuous lighting aging test. |
| Air Transit, Customs & Delivery | 3–5 business days | All-inclusive DDP priority air cargo routing, professional customs clearance, and final-mile truck delivery directly to the job site. |
| Total Project Turnaround | Approx. 25 days | Measured strictly from the day the 50% deposit clears our bank account to final arrival at the New York address. |
The client deliberately chose air freight over standard ocean shipping to ensure the signs arrived before the school term opening date. While ocean shipping is more economical, missing an institutional installation deadline carries severe financial penalties, making the expedited schedule a necessity.
4. Material Engineering: Why Galvanized Steel Over Aluminum?
A common technical question we receive from contractors is why we utilize painted galvanized steel sheets instead of aluminum for circular or complex housing frames. The engineering reality is straightforward: aluminum cannot be effectively side-welded to form seamless, structural circular housings without warping under heat stress.
Galvanized steel provides superior rigidity, allows clean structural welding for 3D returns, and resists corrosion when treated with industrial powder coating. Similar robust construction standards can be observed in our beer cave cooler backlit channel letters case study.

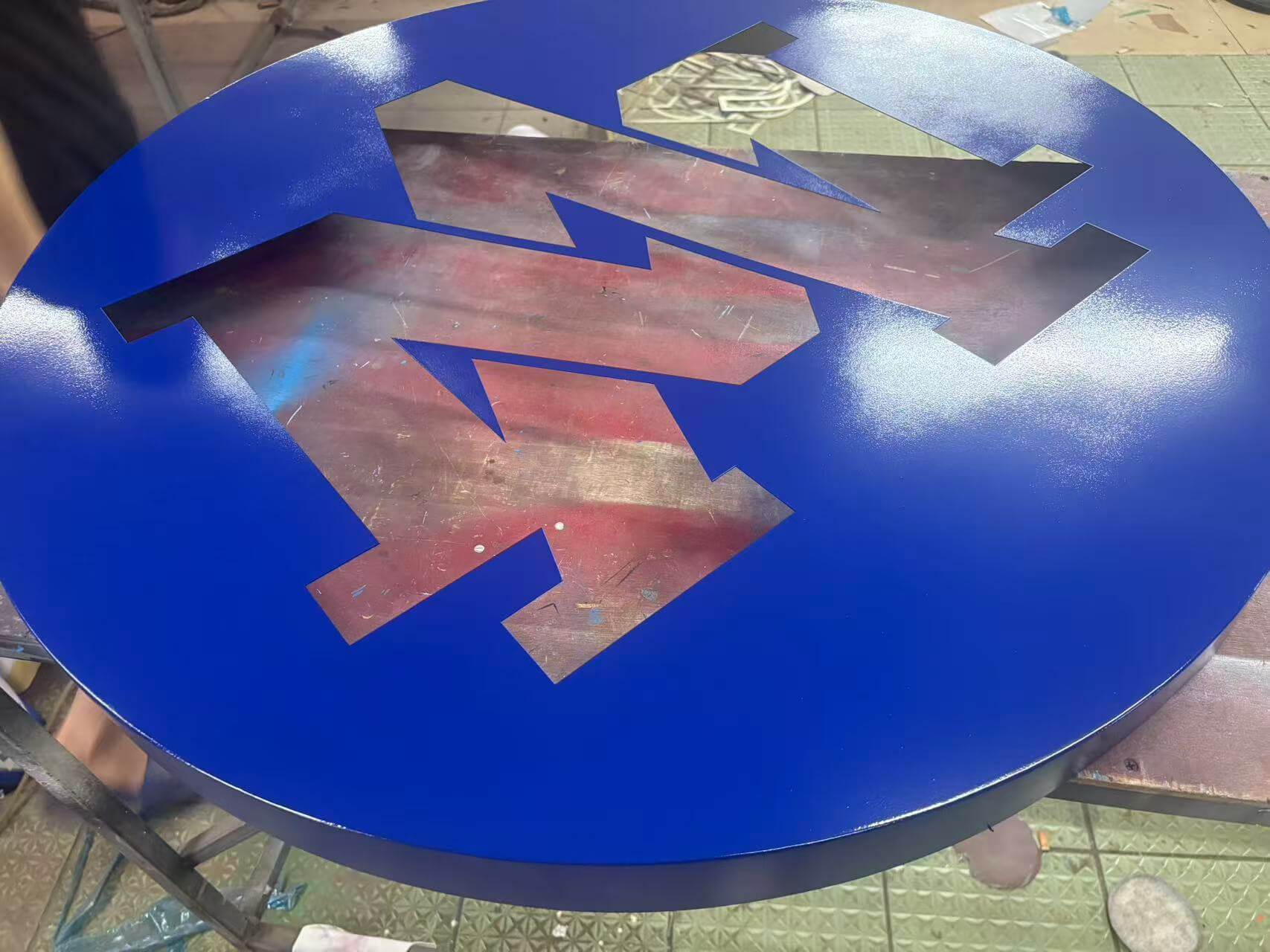

Rigid painted galvanized steel structure with clean side-welding.

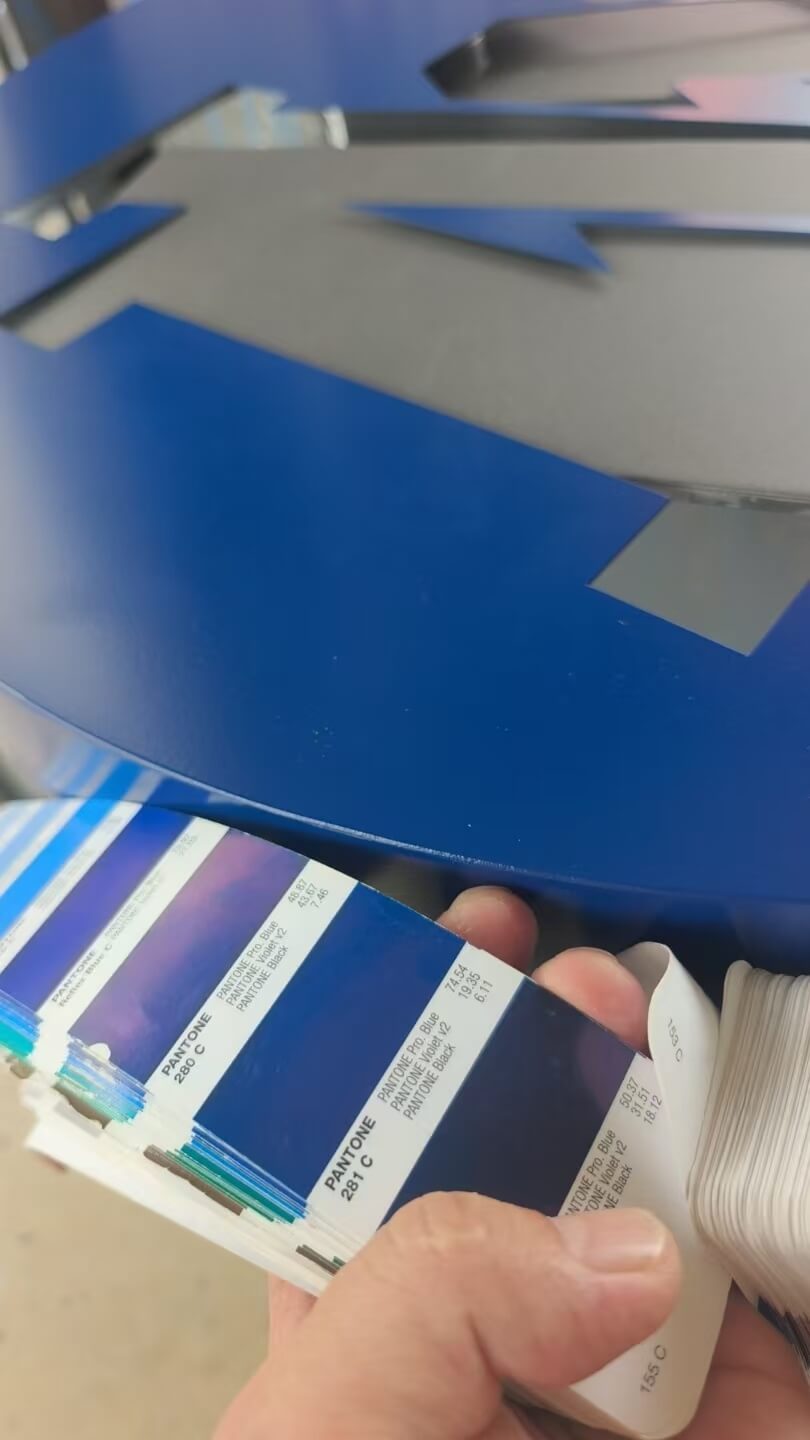

Rigorous Pantone color swatches verification before assembly.
5. Price & Logistics Strategy: Air DDP vs. Sea DDP
Logistics strategy dictates whether a project hits its opening date. Because this New York institutional project faced tight installation deadlines before the start of the school term, sea freight timeline constraints made air shipping a necessity.
| Shipping Method | Total DDP Cost | Transit Time | Project Suitability |
|---|---|---|---|
| Sea Freight (DDP) | $2,610 | 28–35 days | Best for bulk rollouts and flexible schedules |
| Air Freight (DDP) | $3,627 | 3–5 days (after 7 days production) | Selected for this project due to strict delivery deadlines |
The price difference between the two solutions was $1,017 (approximately 39% higher for air express). Factory production costs for the 4 sets of custom halo lit signs remained identical; the cost variance was driven entirely by international air freight tariffs and priority customs clearance. Total project turnaround from deposit clearance to door delivery via air DDP was completed within 25 days.
6. On-Site Installation Guide for Contractors
A common concern among local installation crews receiving overseas shipments is whether extra assembly or complicated electrical rewiring will be required on-site. We engineer every batch of round LED signs for immediate, plug-and-play field deployment.
- Built-In Power Supply: The UL-listed Mean Well power transformer is fully integrated and wired inside the sealed metal housing prior to shipping. Electricians do not need to purchase or house a separate external transformer.
- Included Hardware Package: Every crated shipment comes complete with a 1:1 scale paper installation template, heavy-duty mounting brackets, and corrosion-resistant fasteners.
- Standoff Mounting: The circular backplates utilize 1-inch insulated standoff studs (standoff brackets), allowing proper clearance for rear blue halo light diffusion and secure fastening to exterior or interior masonry/drywall surfaces.
- Contractor Support Videos: We provide step-by-step digital installation video guides that can be forwarded directly to your local electrician or mounting crew, eliminating guesswork and saving labor hours.
Because of this turnkey engineering approach, the sign contractor does not need to dismantle the housing or source local internal parts. The crew simply uncrates the fixture, aligns the 1:1 paper template against the wall, secures the mounting anchors, and connects the incoming 110V power line.
7. Quality Assurance & 48-Hour Aging Test
Zero-error tolerance is mandatory when shipping custom signs internationally. Before crating, every sign undergoes a rigorous 48-hour continuous electrical aging test to rule out driver failure or diode flickering.

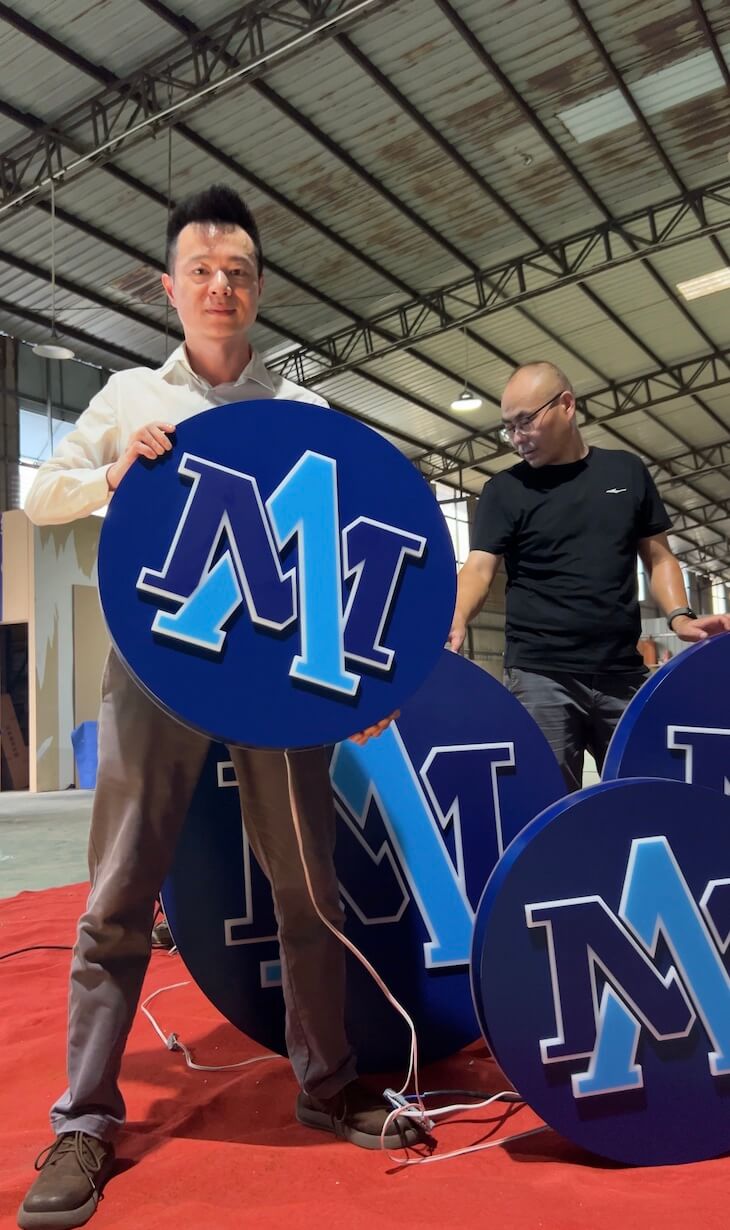

Pre-shipment inspection with the production engineering team.
Final lighting test verifying uniform blue halo diffusion.
Figure 2: Heavy-duty plywood crating ensuring safe international delivery.
Round LED Logo Showcase
Production & Testing
Spray Painting Process
8. Why Sign Contractors Choose Factory-Direct OEM Partnering
For professional sign contractors managing commercial accounts, working with an overseas manufacturing partner provides critical business advantages. By outsourcing fabrication of custom halo lit signs to our factory, contractors secure healthy profit margins while avoiding high local labor costs in major metro areas like New York.
We operate strictly as an OEM white-label manufacturer: we never contact your end clients, your branding remains untouched, and communication flows smoothly without trading company middlemen. This reliability is precisely why this NY contractor returned for subsequent orders, including a 5-foot custom shield light box sign and multi-set channel letter packages.
9. Frequently Asked Questions (FAQ)
1. Why does the backplate use galvanized steel instead of aluminum?
Aluminum cannot be effectively side-welded to form seamless circular housing returns without distortion under heat. Galvanized steel provides superior structural strength and allows clean, rigid welded joints. For contractors installing round LED signs in high-wind or public outdoor environments, this steel body ensures lifetime durability and prevents frame separation over years of thermal expansion.
2. How are the 24-inch and 36-inch circular signs installed on-site?
Each unit ships fully wired with a 1:1 paper installation template, pre-drilled mounting brackets, and 1-inch insulated standoff studs that allow secure mounting directly to exterior or interior masonry/drywall surfaces. For larger 36-inch configurations, our engineered standoff distribution evenly disperses wall weight while maintaining proper clearance for rear halo illumination. This hardware configuration enables local installation crews to complete mounting rapidly without needing specialized custom brackets or unexpected field modifications.
3. Is a blue halo backlighting effect clearly visible during daylight hours?
Halo backlighting is primarily designed for dramatic night-time and dusk ambiance by casting a soft aura against the wall. For high-visibility daytime viewing, our dual-lit configuration also illuminates the front acrylic letter faces simultaneously, ensuring that custom halo lit signs remain crisp, legible, and professional under direct sunlight.
4. How much faster and more expensive is air freight compared to sea freight?
Air DDP shipping takes 3 to 5 days of transit time (total project turnaround ~25 days) and costs about 39% more than standard ocean freight, which requires 28 to 35 days. The price difference of $1,017 stems entirely from priority air tariffs and customs handling, whereas factory production costs remain identical. For time-sensitive rollouts, the freight variance is far cheaper than the labor cost of rescheduling missed opening dates.
5. What is the outdoor lifespan and ingress protection rating?
Our outdoor round LED signs feature IP67-rated sealed LED modules and UL-listed Mean Well drivers, engineered to withstand heavy rain, snow, and extreme thermal fluctuations for over 8 years. This heavy-duty weatherproofing protects internal electrical components from moisture ingress, significantly reducing warranty callbacks and service maintenance for commercial building owners. By utilizing industrial-grade powder coating and rigorous factory stress testing, we ensure that every sign maintains structural integrity and brilliant illumination across extended operational lifecycles.
6. Are the signs shipped fully assembled or as modular parts?
These circular signs are shipped fully assembled in heavy-duty export plywood crates, complete with internal transformers so electricians only need to connect incoming 110V power lines. Because the internal wiring and power supplies are pre-installed at our factory, installation time is cut in half and wiring mistakes on the job site are completely avoided. Furthermore, pre-assembly ensures that every custom seal, waterproof gasket, and internal electrical connection undergoes rigorous factory quality control before dispatch, giving installation contractors total peace of mind upon arrival.
Related Case Studies & Guides
Partner With Us for Your Next Commercial Signage Project
Looking for a dependable factory partner for custom halo lit signs, round LED signs, or channel letters? We offer fast 7-day production turnarounds, white-label OEM support, and secure DDP door-to-door delivery.
💬 WhatsApp: +86-131-1222-5599Send your vector files, dimensions, and zip code for a free 3D mockup and quote.
Frequently Asked Questions
How much did the four round halo-lit signs cost with DDP delivery?
Delivered duties paid, the full set was $2,610 by sea freight and $3,627 by air freight. Both figures include crating, freight, US import duties and final delivery — there are no extra charges on arrival.
What sizes and materials were used for these halo-lit signs?
The signs were produced in 24-inch and 36-inch diameters with 1mm galvanized steel housings and acrylic faces. Side welding was used on the returns to keep the halo glow even around the full circle.
Can you match our exact brand colour?
Yes. The blue halo lighting was matched to a Pantone reference supplied by the college, and every unit was checked against it before the 48-hour continuous aging test.
Are halo-lit signs suitable for outdoor use?
Yes. These units were built with IP67 waterproof protection and sealed steel housings, and each one ran a 48-hour continuous burn-in test at the factory before packing.
How long does manufacturing and delivery take?
Production took 7 working days after blueprint approval, and the shipment arrived within 25 days of the deposit — before the school opening date. Sea freight is slower but cheaper; air freight adds roughly 10 to 14 days total transit instead of 4 to 5 weeks.
